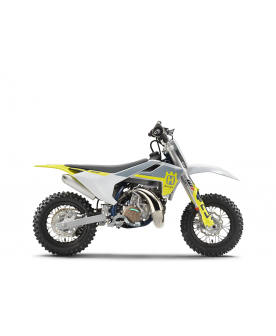

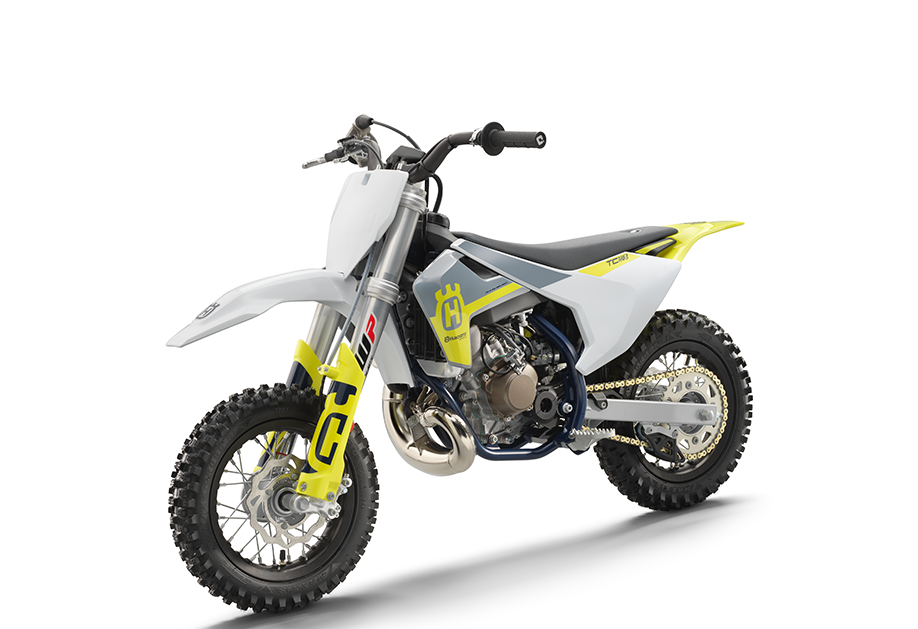

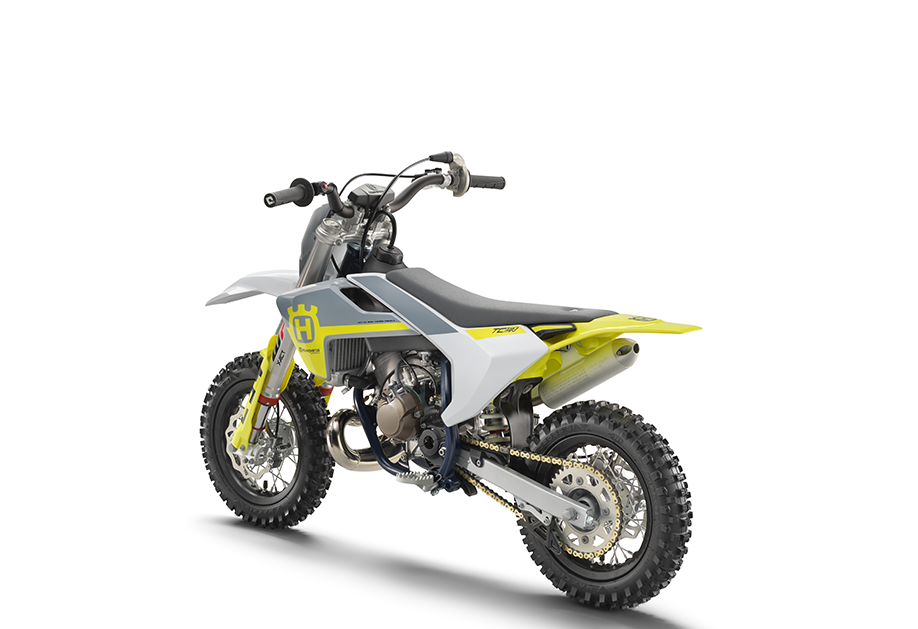

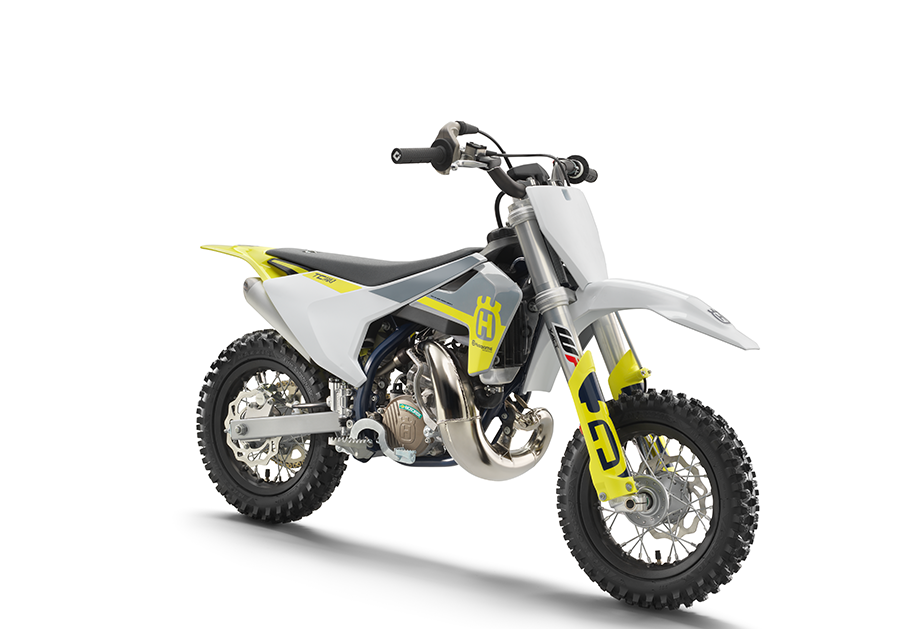

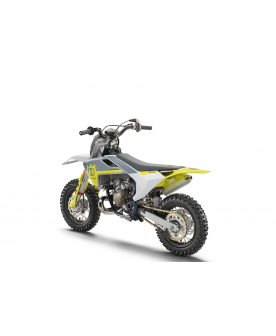

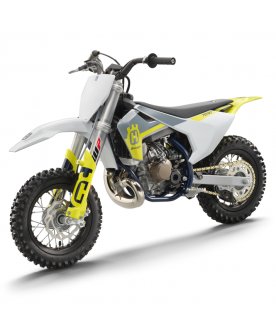

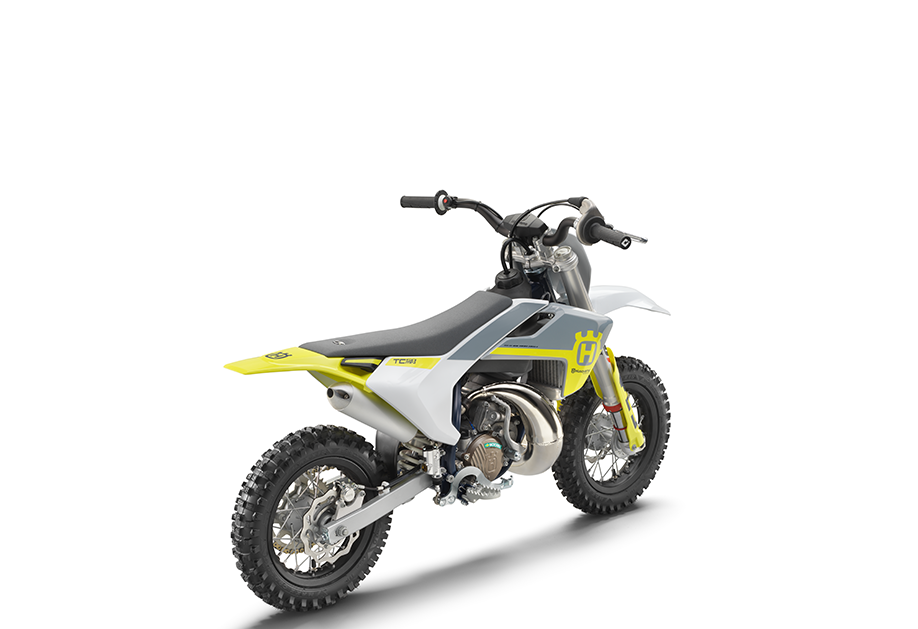

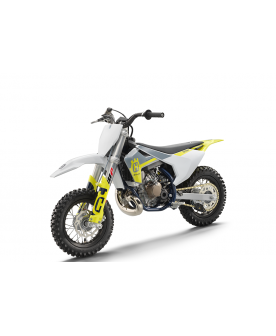

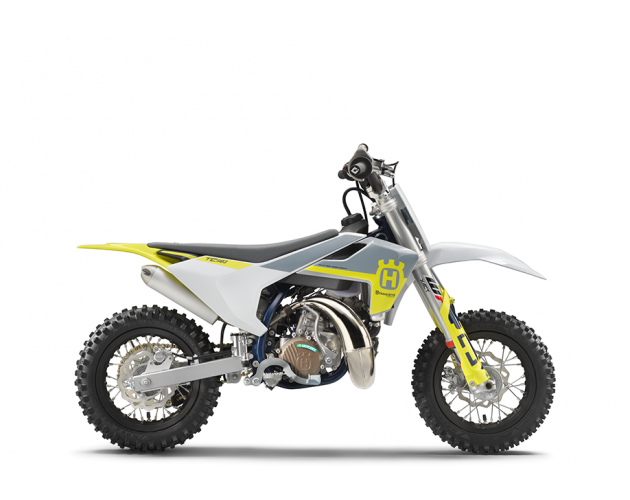

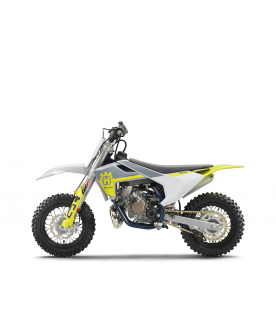

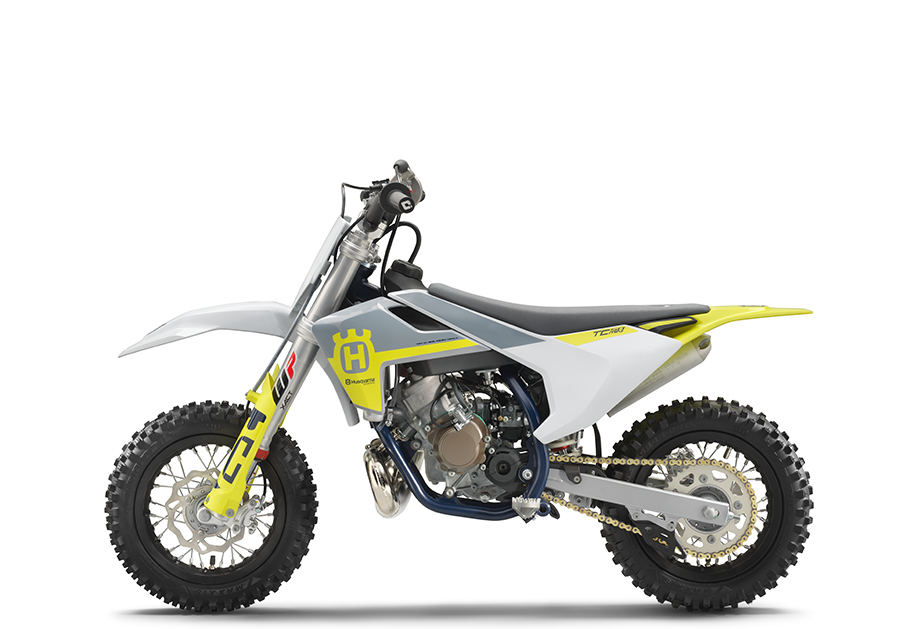

Husqvarna TC 50 2023

Husqvarna TC 50 2023

Product #HSKY-TC-50-23

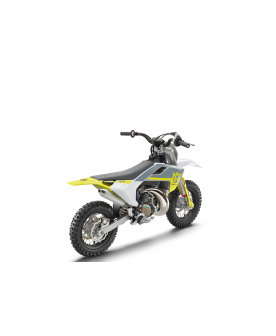

Utilising many of the same technologies found on the larger machines in the minicycles range, the TC 50 Mini offers future motocross superstars the highest level of performance at the youngest age. Manufactured with unrivalled attention to detail and assembled with high quality components, the TC 50 Mini is a premium motorcycle designed to be the most accessable model to enter the world of offroad motorcycles.



Trusted by thousands of customers worldwide



Same day shipping if ordered before 1PM



Easy returns policy on all items

Call for price & availability +35314526170

HUSQVARNA TC 50 2023

Utilising many of the same technologies found on the larger machines in the minicycles range, the TC 50 Mini offers future motocross superstars the highest level of performance at the youngest age. Manufactured with unrivalled attention to detail and assembled with high quality components, the TC 50 Mini is a premium motorcycle designed to be the most accessable model to enter the world of offroad motorcycles.



2-stroke performance

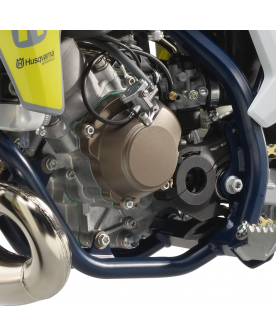

Engine

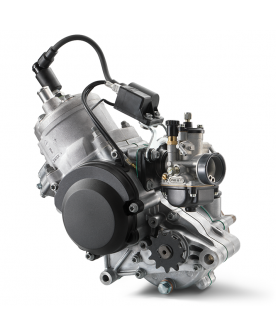

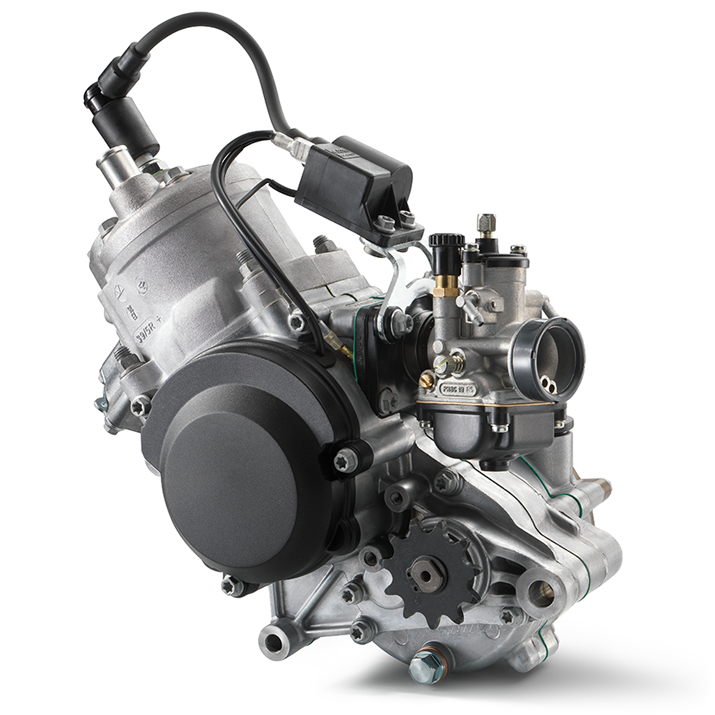

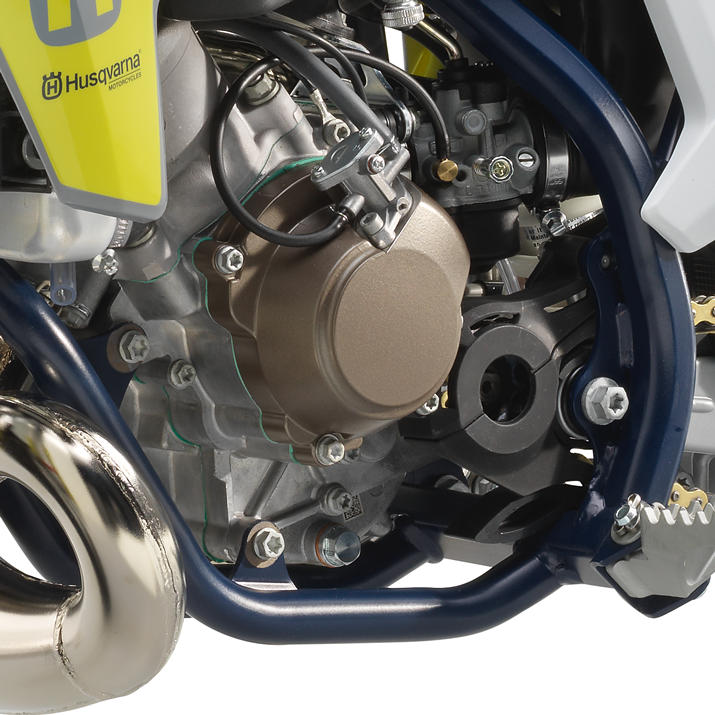

The modern and compact engine features the latest in 2-stroke technology offering class leading performance and ride-ability. By using a 3-shaft design, the crankshaft is positioned near the centre of gravity which not only benefits mass centralisation but also creates the ideal intake angle into the reed valve delivering top level performance. Additionally, a power reduction kit is available from Husqvarna accessories which limits the TC 50 Mini to 5.5hp for first timers and complete beginners.

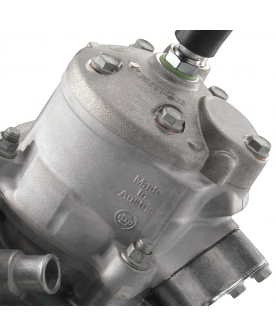

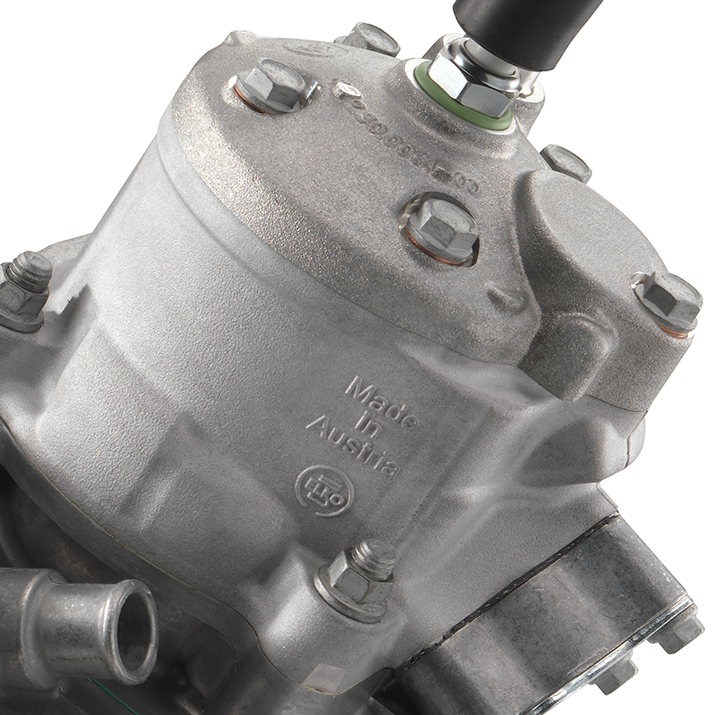

Cylinder

The high performance cylinder is made from lightweight and durable aluminium. It incorporates a pressure controlled exhaust valve (PCEV) which provides unrivalled performance within the highly competitive 50cc class.

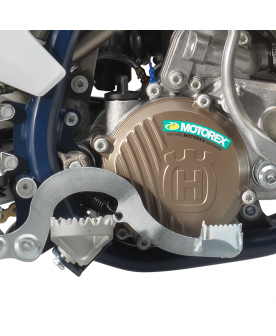

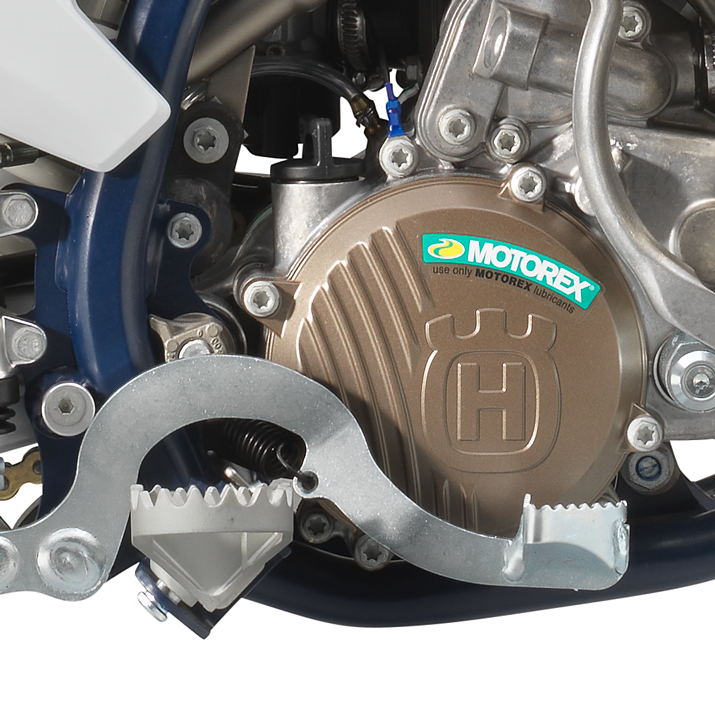

Automatic clutch

A key feature of the TC 50 Mini is the automatic centrifugal clutch. This allows the young rider to focus on riding without the complexity of operating a manual clutch and gearbox. The multi-disc clutch delivers a precise and predictable power delivery across the RPM range

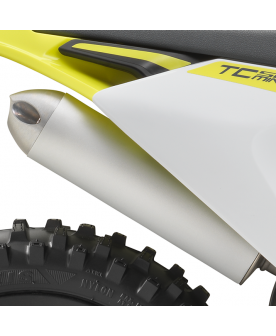

Exhaust

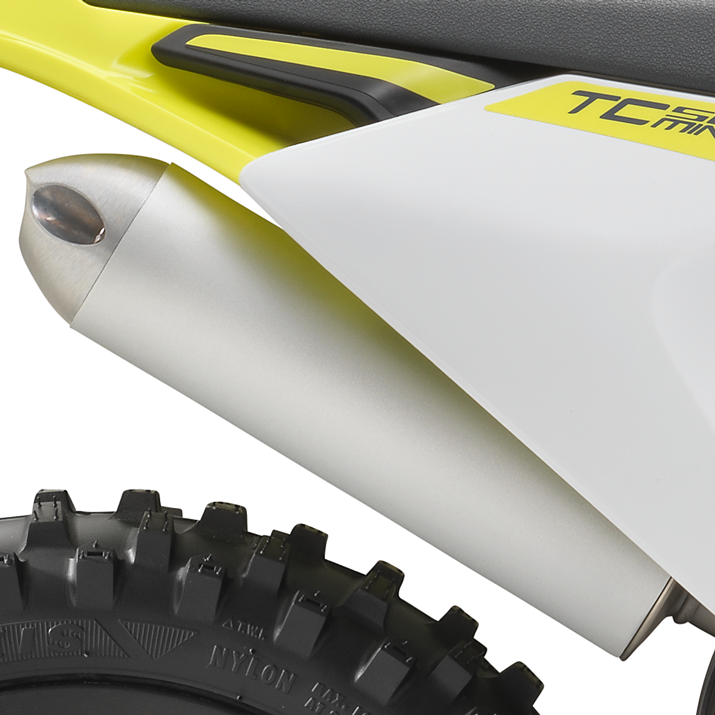

The exhaust is designed to specifically match the character of the TC 50 Mini engine and is manufactured using a 3 dimensional stamping process. Once the components are shaped they are robot welded to ensure high levels of quality and durability.



Premium components

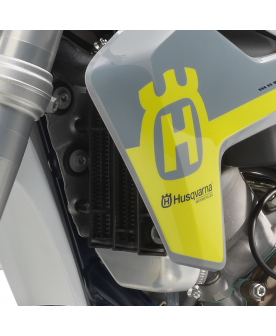

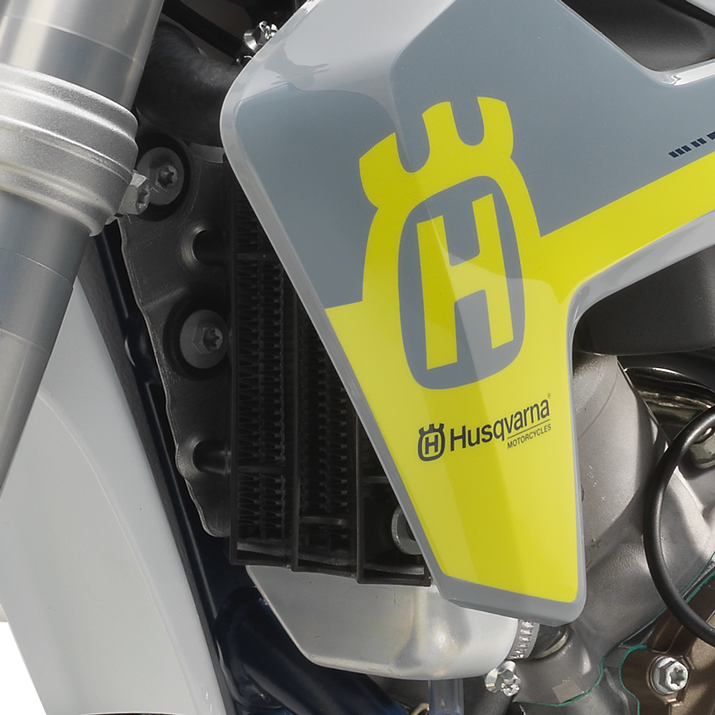

Cooling

Featuring the latest technology, the TC 50 Mini uses a liquid cooling system to cool the cylinder as well as the crank cases. For its size, the TC 50 Mini uses large radiators which work together with the spoilers to channel air through the cooling fins efficiently ensuring sufficient cooling in all conditions.

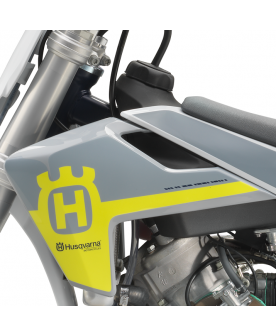

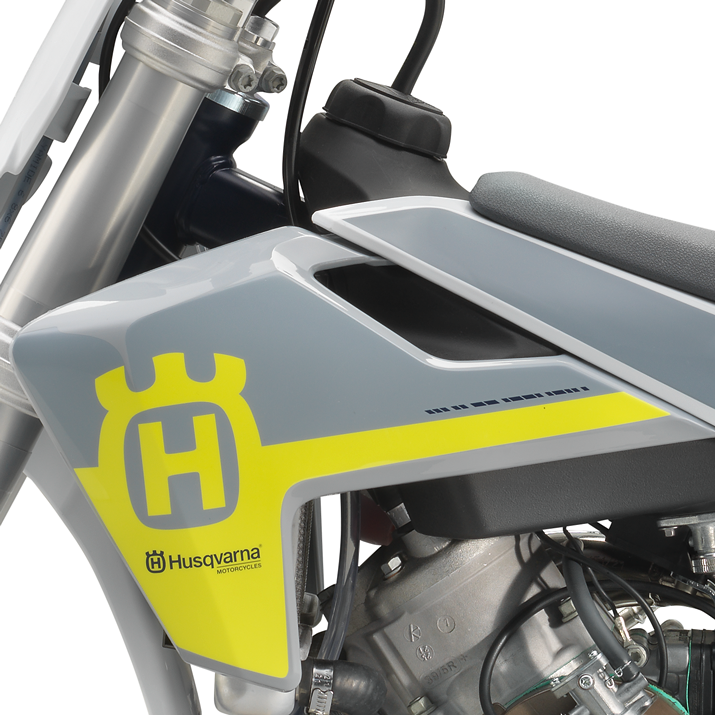

Graphics

Inspired by the Swedish heritage of the Husqvarna brand, the striking white, grey, and yellow graphics are applied using in-mould technology for increased durability and a quality finish.


Bodywork

The bodywork of the TC 50 Mini harnesses years of motocross testing and experience to offer the perfect ergonomic feeling instilling confidence and comfort in all riding conditions.

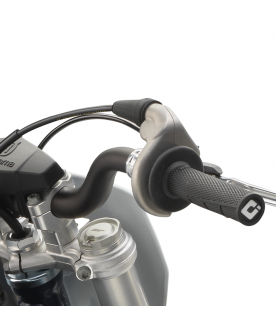

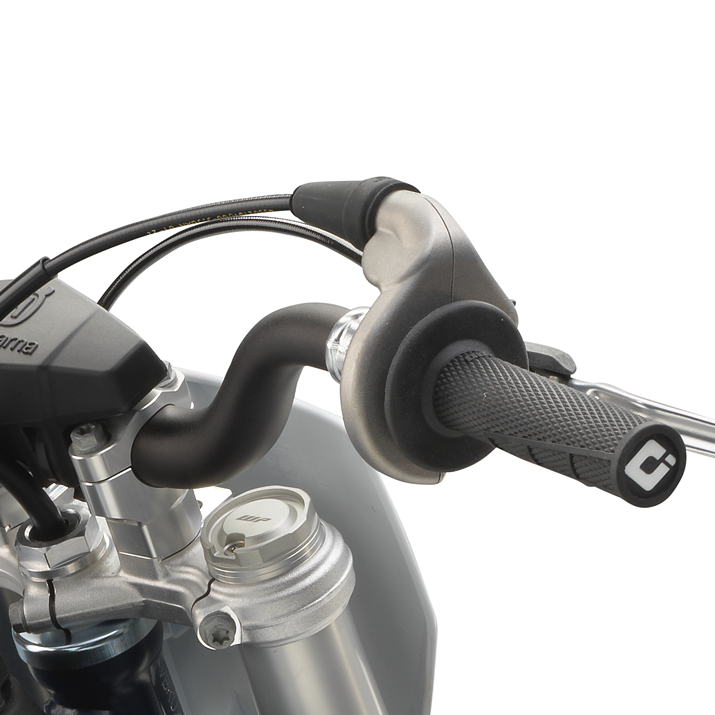

Handlebars

Made of high quality aluminium alloy, the handlebars offer top stability and safety. A crash pad on the handlebar brace protects the rider from any impact.

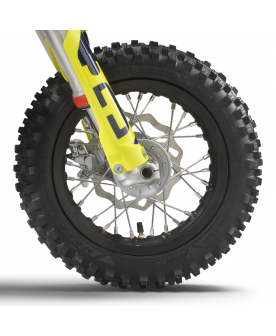

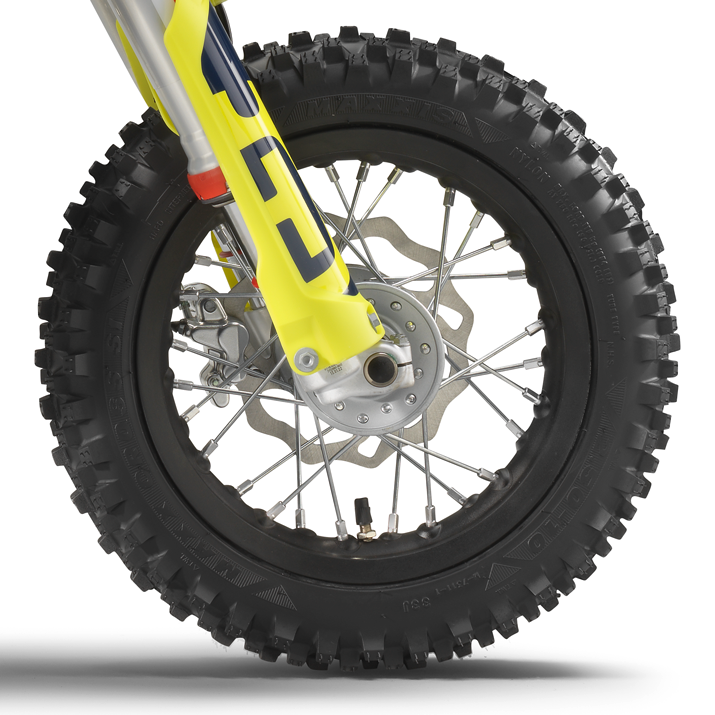

Wheels

The TC 50 Mini uses specific lightweight, black anodised, aluminium rims in 10'' dimension providing an approachable seat height for the youngest riders. The MAXXIS MAXXCROSS-MX-ST tyres provide progressive grip on a variety of different racing surfaces.



Advanced chassis


Brakes

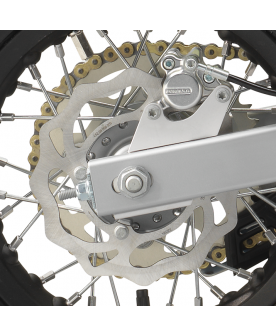

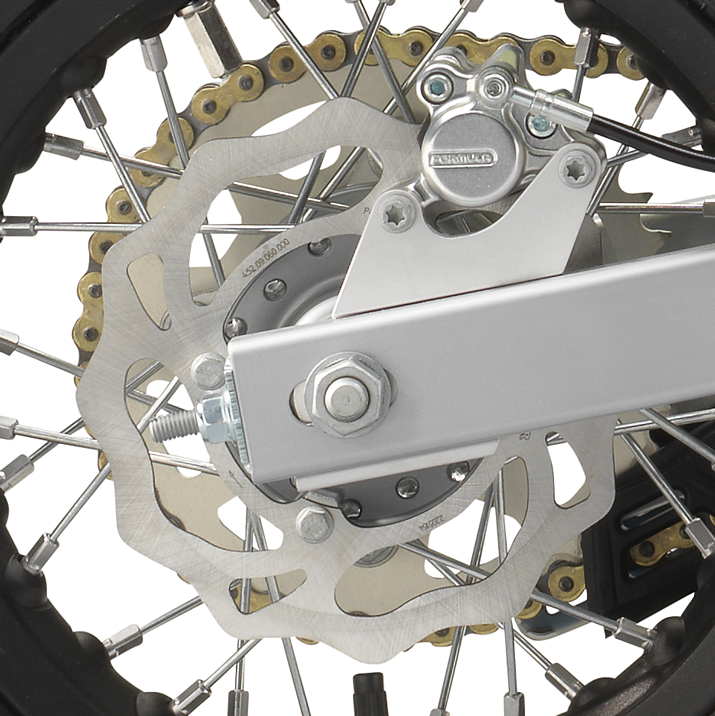

Featuring the same level of technology offered on the full-size motocross range, the TC 50 Mini is fitted with hydraulically operated brake calipers and waved front and rear brake discs. The system ensures advanced brake feeling and stopping performance in all conditions.


Frame

The high strength chromium molybdenum steel frame integrates carefully calculated parameters of longitudinal flex and torsional rigidity to benefit handling and suspension functionality. It guarantees easy handling and precise cornering, along with outstanding stability.


WP XACT Front Fork

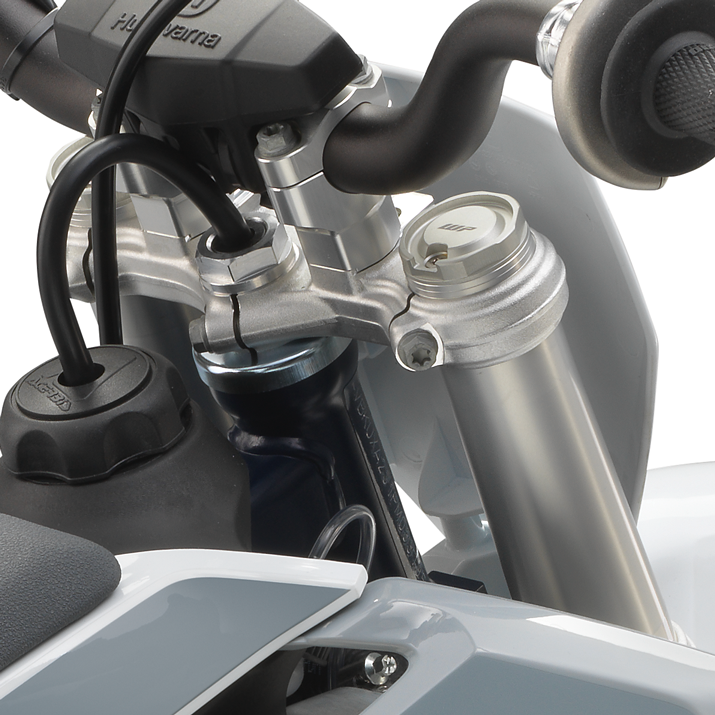

Featuring the latest in suspension technology, the TC 50 Mini is fitted with WP XACT forks. Besides being very lightweight, the 35 mm USD forks feature exceptional damping and comfort characteristics allowing the rider to push the limit with complete confidence.

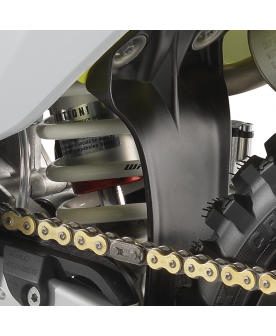

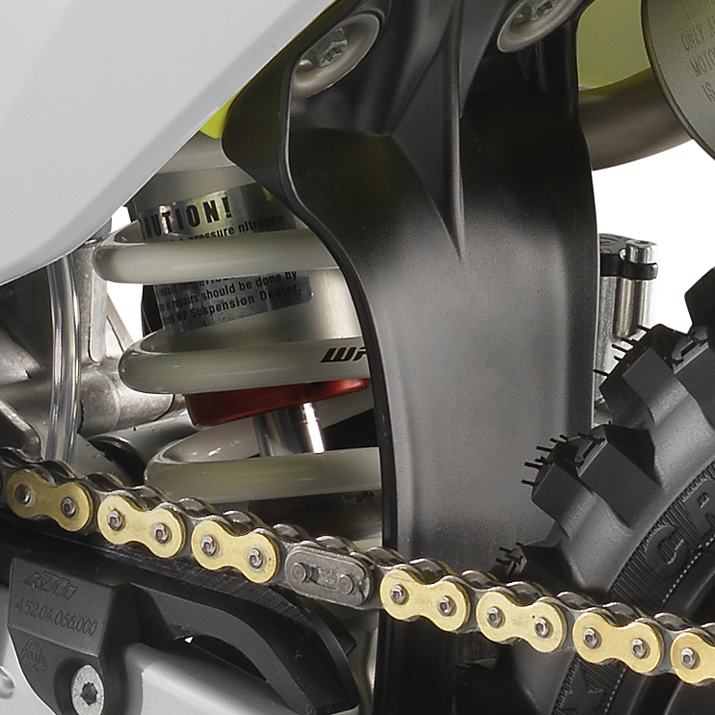

WP PDS Rear Shock

Linked directly to the swingarm, the WP monoshock is matched perfectly to the front forks for the perfect balance and damping characteristics.





TC50 TECHNICAL SPECS



ENGINE

TRANSMISSION Single-speed automatic

STARTER Kickstarter

STROKE 40 mm

BORE 39.5 mm

CLUTCH Centrifugal clutch (adjustable)

DISPLACEMENT 49 cm³

EMS Seletra 2p D36

DESIGN 1-cylinder, 2-stroke engine


CHASSIS

WEIGHT (WITHOUT FUEL) 41.5 kg

TANK CAPACITY (APPROX.) 2.3 l

FRONT BRAKE DISC DIAMETER 160 mm

REAR BRAKE DISC DIAMETER 160 mm

FRONT BRAKE Disc brake

REAR BRAKE Disc brake

CHAIN 1/2 x 3/16"

FRAME DESIGN Chrome-molybdenum steel central-tube frame

FRONT SUSPENSION XACT 35 WP Upside-Down fork, Ø 35 mm

GROUND CLEARANCE 252 mm

REAR SUSPENSION XACT WP mono shock

SEAT HEIGHT 665 mm

STEERING HEAD ANGLE 66 °

SUSPENSION TRAVEL (FRONT) 205 mm

SUSPENSION TRAVEL (REAR) 185 mm

HSKY-TC-50-23

Data sheet

Bike Discipline
Motocross
Engine
2 Stroke
Product Type
Bike
Bike Make
TC50
Bike Year
2023
