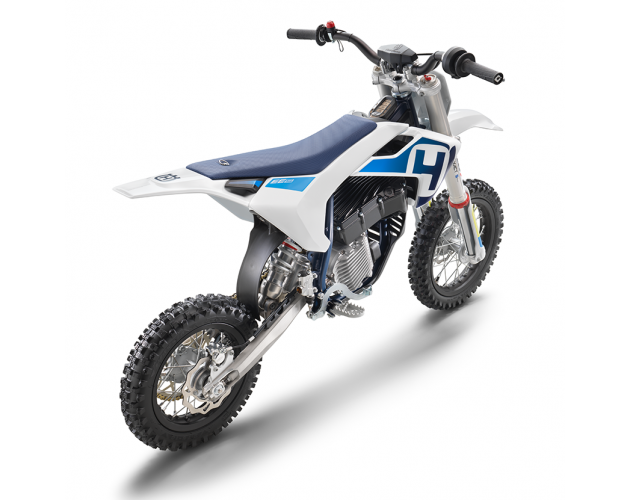

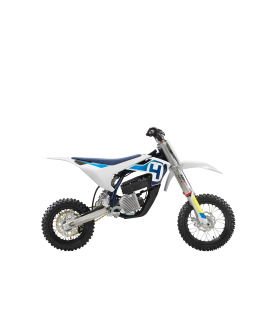

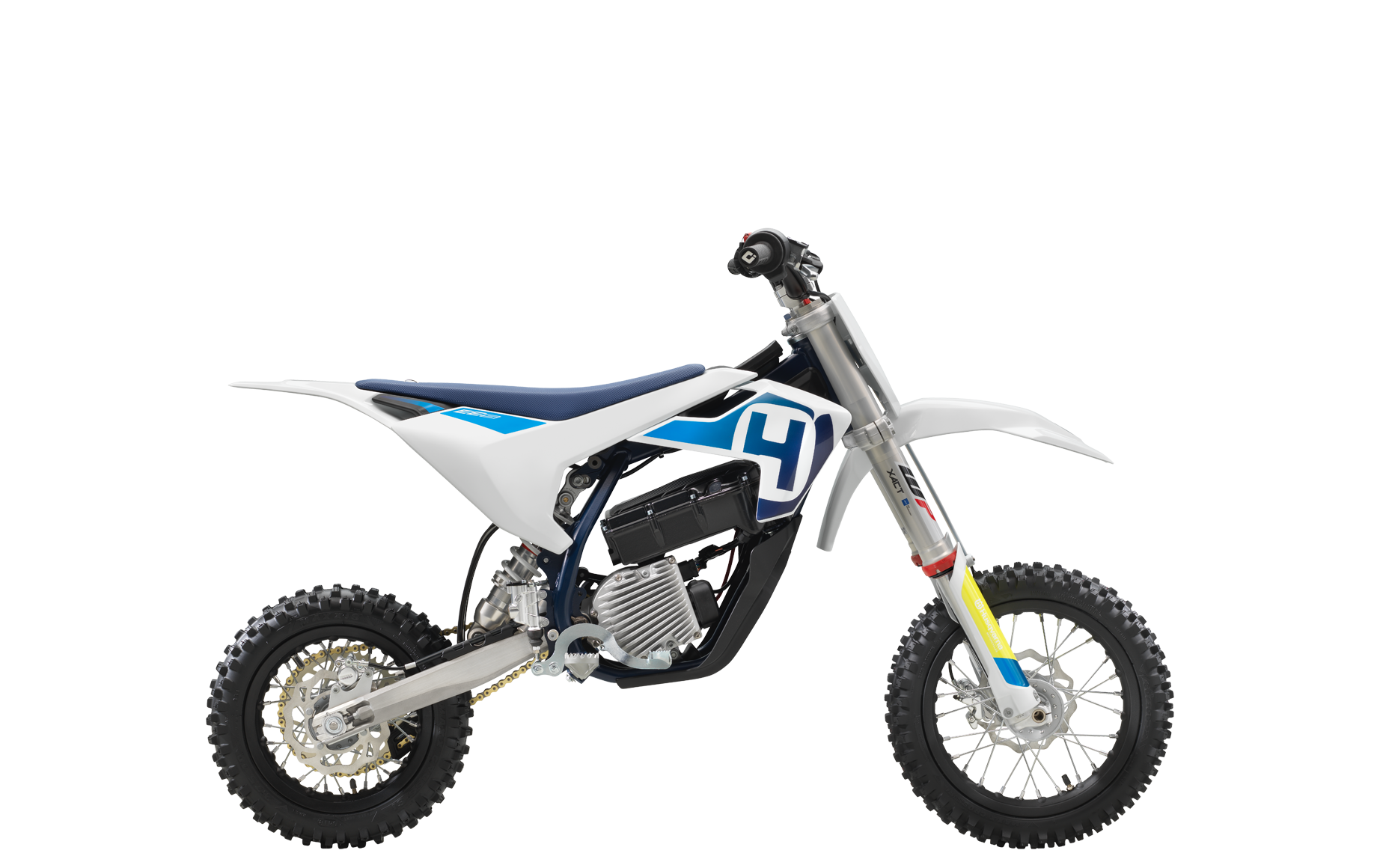

Husqvarna EE 5 2022
Product #HSKY-ee-5-2022
Zero Emissions. More Riding.
The EE 5 is Husqvarna Motorcycles' first step into electric mobility, drawing on the brand's rich motocross history combined with modern, pioneering technology. Powered by an adjustable electric motor capable of rivalling its 50cc fuel-powered counterparts, it is perfect for young racers and grassroots beginners. The EE 5 is also fully adaptable and adjustable for height, making it accessible to younger riders. Additionally, low noise and zero carbon emissions make the EE 5 more accessible to younger riders and more accepted in areas where noise emissions are restricted.
Husqvarna EE 5 2022 - Zero Emissions. More Riding.
The EE 5 is Husqvarna Motorcycles' first step into electric mobility, drawing on the brand's rich motocross history combined with modern, pioneering technology. Powered by an adjustable electric motor capable of rivalling its 50cc fuel-powered counterparts, it is perfect for young racers and grassroots beginners. The EE 5 is also fully adaptable and adjustable for height, making it accessible to younger riders. Additionally, low noise and zero carbon emissions make the EE 5 more accessible to younger riders and more accepted in areas where noise emissions are restricted.

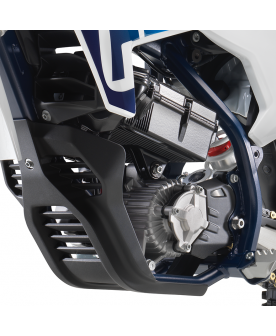

ELECTRIC MOTOR

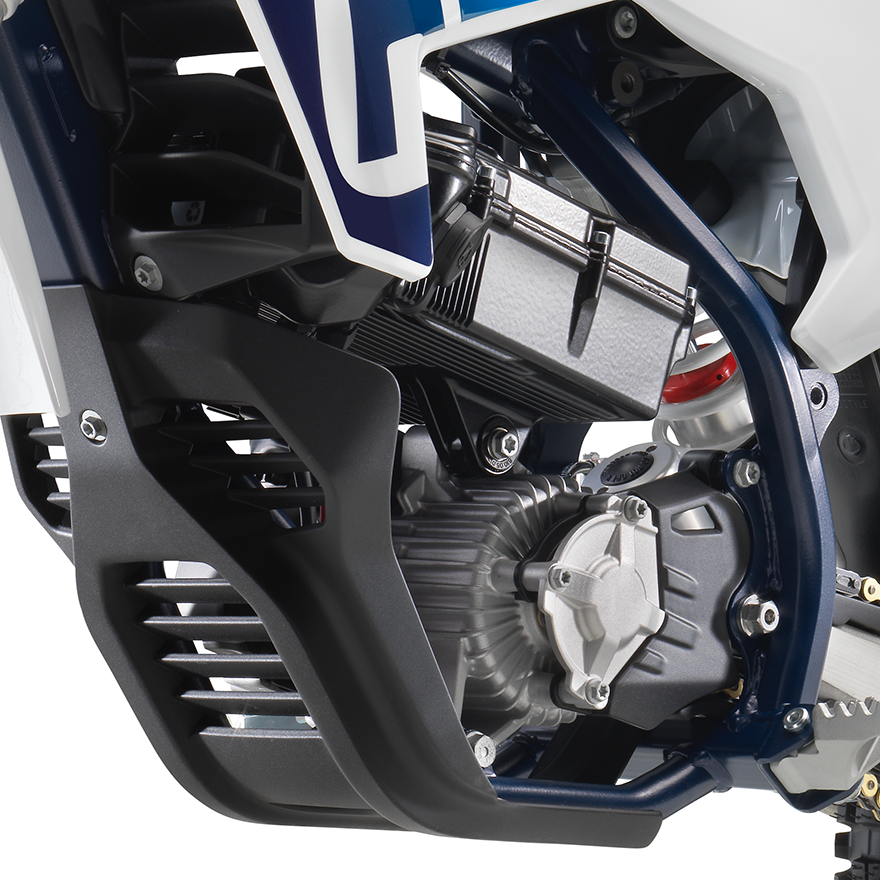

The electric motor fitted to the EE 5 produces a peak power output of 5 kW - much the same as its 2-stroke counterpart. The permanent magnet, air-cooled motor features an extremely compact and slim design, which is well suited to the smaller chassis. The electric motor is also air-cooled, water and dust-proof, making it largely maintenance free. Lastly, an integrated control unit (ECU) guarantees a direct, but very controllable and unintimidating power delivery in all conditions.
BATTERY
Powering the electric motor in the EE 5 are 84 modern lithium ion cells, mounted in a robust die-cast aluminium casing. This accounts for 907 Wh of stored energy, giving the EE 5 up to two hours of general riding, or 25 minutes of fast-paced full-power racing. The integrated battery management system (BMS) further ensures the safety and longevity of the battery pack.
CHARGER
The external worldwide charger supplying up to 900 W can be connected to any 110 or 230 Volt sockets, plugging directly into the battery pack for easy charging. Quick charging times of 45 minutes (80%) or 70 minutes (100%) mean more time in the saddle, and less time in the pits.
MULTIFUNCTIONAL INSTRUMENT

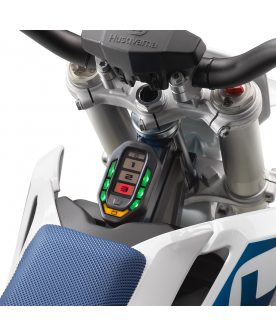

Ensuring users have all relevant information at a glance, a multi-functional instrument and display is located between the steering head and seat. The user can select 6 different ride modes with different power characteristics suited from beginners, up to experienced racers. In addition, the remaining battery charge is also displayed.

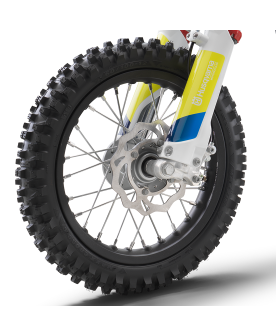

WHEELS AND BRAKES

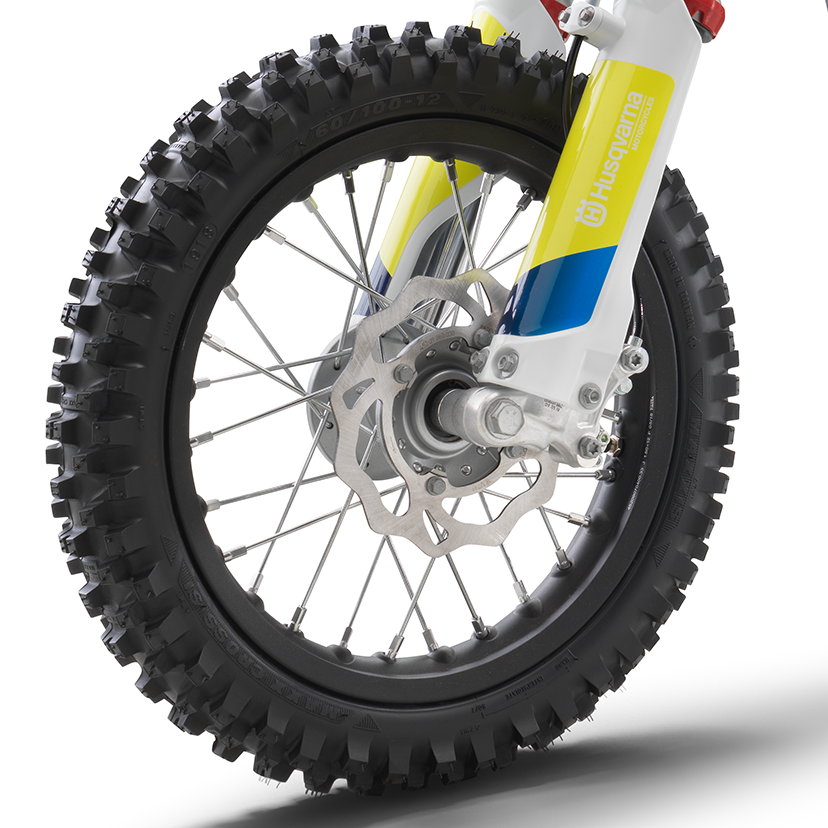

Mirroring the full-size motocross range, the EE 5 uses lightweight, black anodised aluminium rims, MAXXIS tyres and hydraulically operated brake callipers and waved front and rear brake discs. This combination of wheels, tyres and brakes provide progressive grip and advanced braking feel in all conditions.

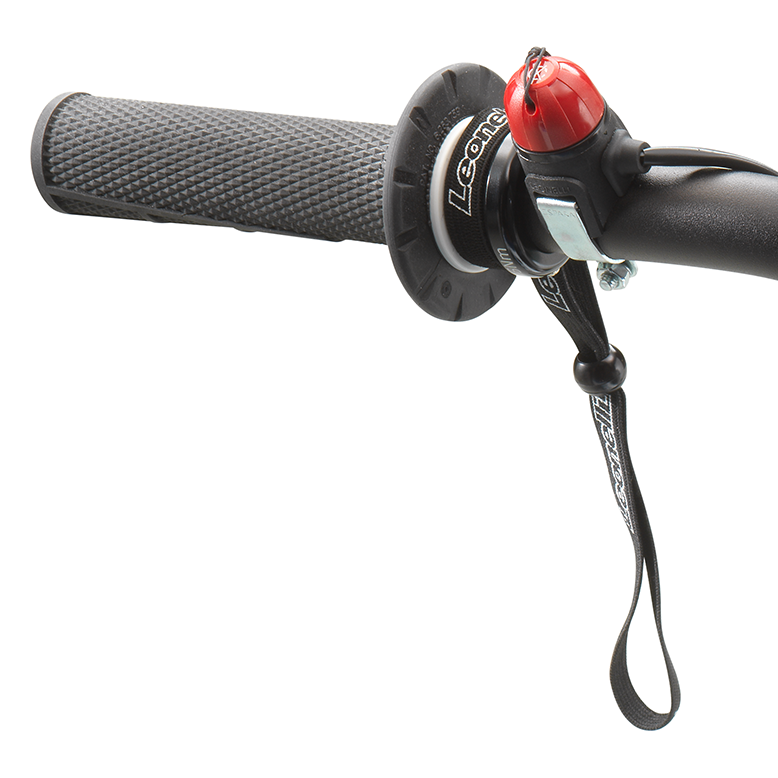

HANDLEBAR

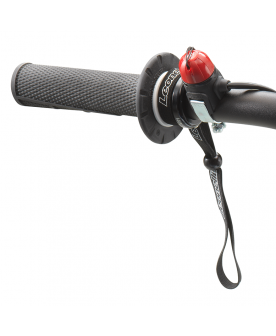

Ensuring stability and safety at the helm, tapered NEKEN handlebars are mounted as standard. With a tapered diameter of 28 mm to 22 mm in the bends to cylindrical ends of 18 mm in the grip area, the narrower diameter benefits younger riders with better grip and less fatigue. The throttle assembly for the electronic drive features a vulcanised ODI grip mounted on the right-hand side, along with a new crash pad on the handlebar brace to protect the rider from any rough contact.
TECHNICAL SPECS
ENGINE
RATED OUTPUT 2 kW / 3,200 rpm
TORQUE 13.8 Nm
BATTERY CAPACITY 21 Ah
CHARGER LINE VOLTAGE 80-240 V/50-60 Hz
CHARGING INPUT Quick charging 5 A @ 230 V (AC)
CHARGING POWER 900 W
CHARGING TIME 100 % 70 min.
CHARGING TIME 80 % 45 min.
COOLING Air cooled
ELECTRIC MOTOR 48 V - BLDC motor with outer rotor
6000 rpm
MAX. POWER 5 kW / 3,900 rpm
CHASSIS
FRONT BRAKE DISC DIAMETER 160 mm
REAR BRAKE DISC DIAMETER 160 mm
FRONT BRAKE Disc brake
REAR BRAKE Disc brake
CHAIN 1/2 x 3/16"
FRAME DESIGN Chrome-molybdenum steel central-tube frame

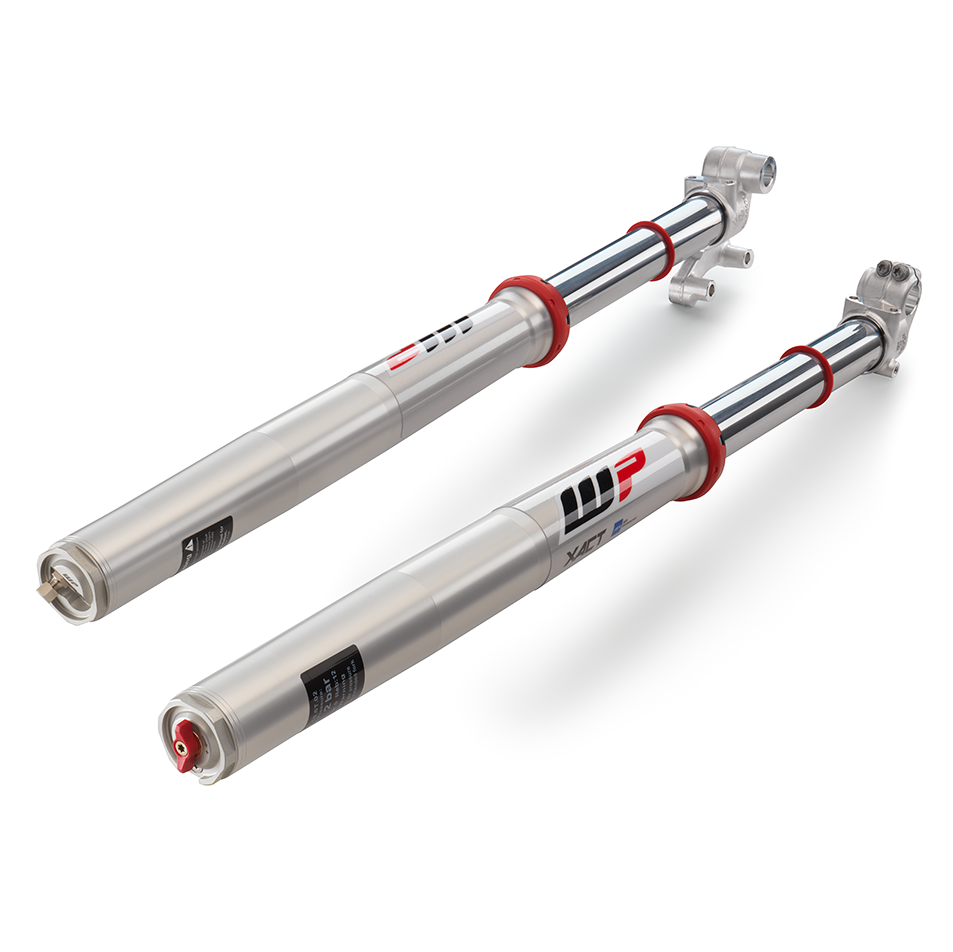

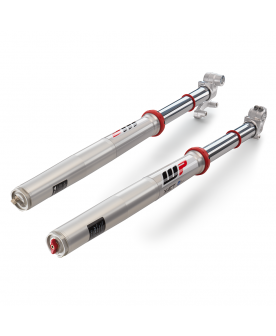

FRONT SUSPENSION XACT 35 WP Upside-Down fork, Ø 35 mm
GROUND CLEARANCE 252 mm
REAR SUSPENSION XACT WP PDS mono shock
SEAT HEIGHT 665 mm
STEERING HEAD ANGLE 66 °
SUSPENSION TRAVEL (FRONT) 205 mm
SUSPENSION TRAVEL (REAR) 185 mm
