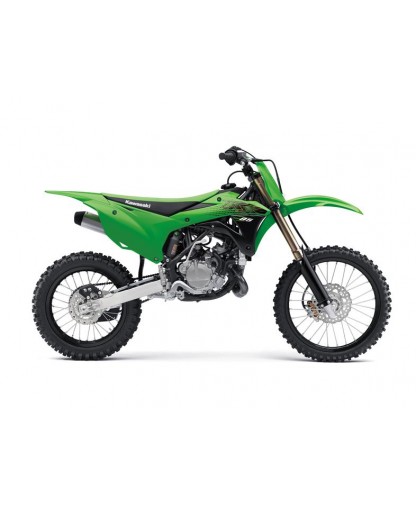

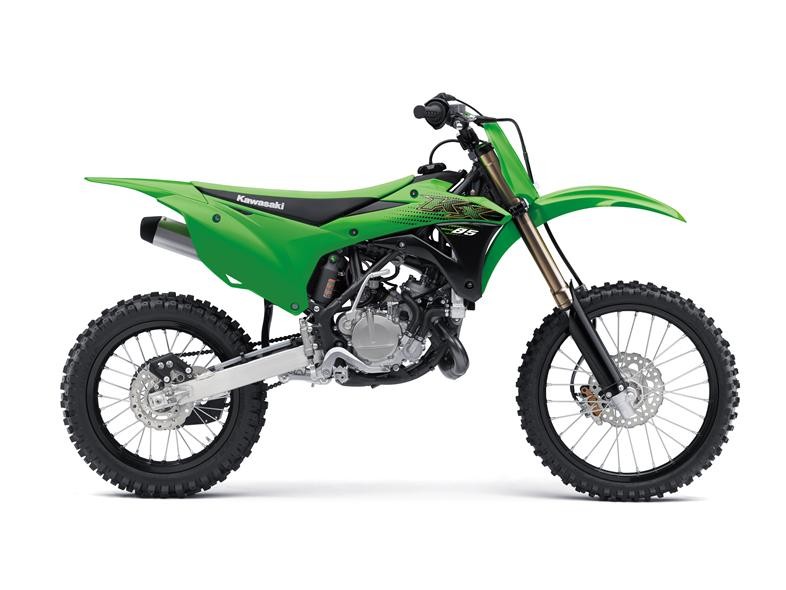

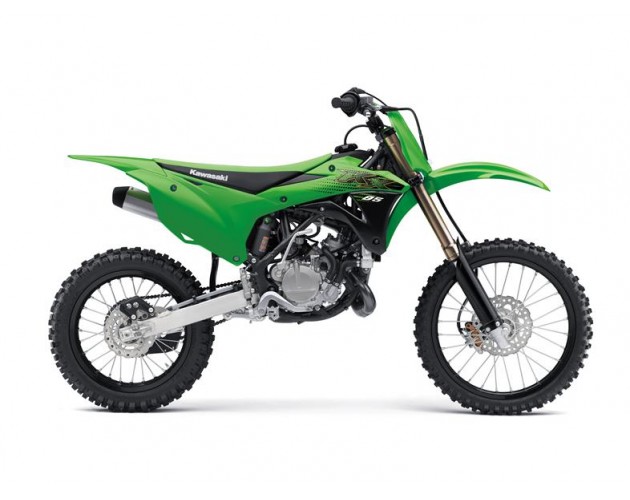

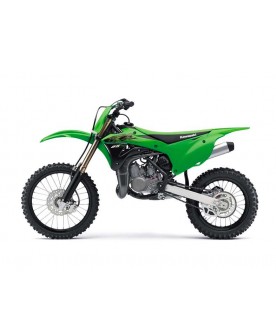

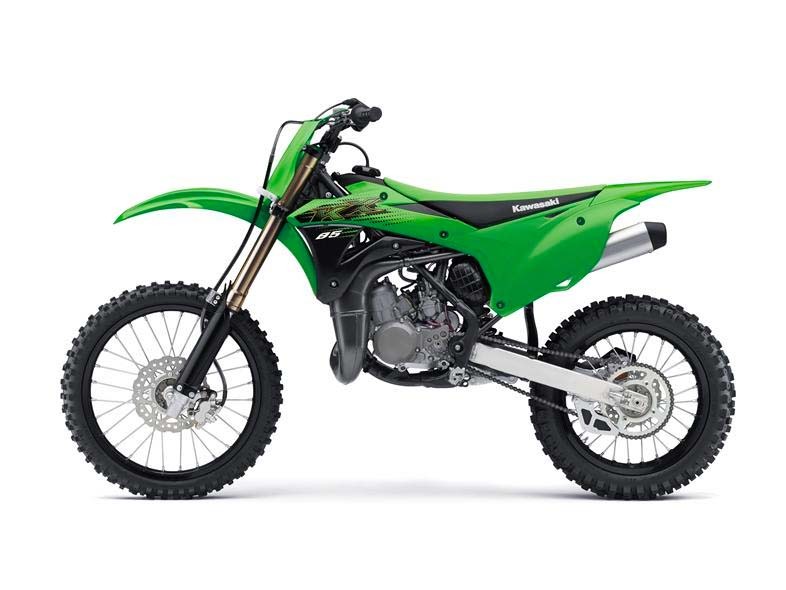

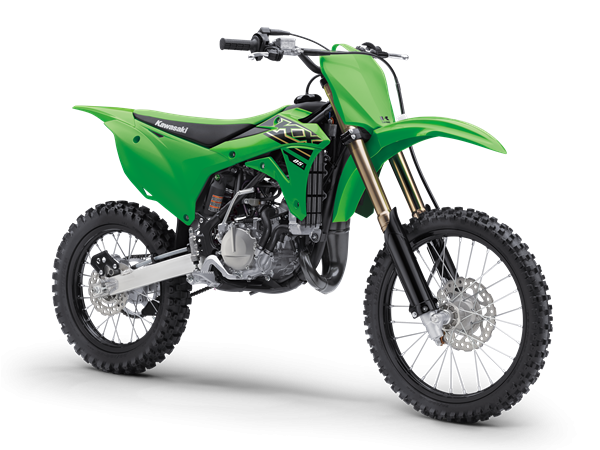

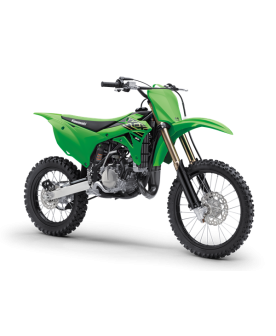

2021 Kawasaki KX85 19/16

2021 Kawasaki KX85 19/16

Product #:KAW-21-KX85

All-new bodywork and racy graphics ensure the new bikes will look good in the winners’ circle. Black alumite1 rims, black fork guards, and blue alumite1 finish on the suspension adjusters further strengthen their factory image.

Call for price & availability +35314526170

Kawasaki KX85 19/16 - 2022


Factory Styling

All-new bodywork and racy graphics ensure the new bikes will look good in the winners’ circle. Black alumite1 rims, black fork guards, and blue alumite1 finish on the suspension adjusters further strengthen their factory image.



36 mm inverted fork

Revised fork offers improved damping and bottoming resistance, enabling higher-paced riding and contributing to increased ride comfort.



6-position handlebar

A choice of six positions allows riders to tailor their riding position.



Uni-Trak rear suspension

Revisions to the rear shock contribute to a more stable ride feel, and offer increased adjustability and lighter weight.



Petal disc brakes

Disc brakes front and rear ensure strong stopping power with excellent control. Now with petal discs, just like the larger KX models.



Slim ergonomics

All-new minimalist bodywork, flatter tank and slimmer, flatter seat were designed to make it easier for racers to go fast.



Powerful 2-stroke

A low-friction piston, new KIPS valve and numerous other updates give these liquid-cooled, 2-stroke racing engines increased power and torque across the rev range.



Two available sizes

Riders can choose from two available sizes: the KX85-II feature 19” front and 16” rear wheels; the KX85-I is equipped with a 17” front and 14” rear.



Rigid, high-tensile steel perimeter frame

Sturdy perimeter frame enables young riders to push hard on the track.



Engine

Engine type: Liquid-cooled, 2-stroke Single with KIPS

Displacement: 84 cm³

Bore x stroke: 48.5 x 45.8 mm

Compression ratio: 10.9:1 (low speed); 9.0:1 (high speed)

Valve system: Piston reed valve

Fuel system: Carburettor: Keihin PWK 28

Ignition: Digital CDI

Starting System: Primary Kick

Lubrication: Petrol mix



Transmission

Transmission: 6-speed

Final drive: Chain

Primary Reduction Ratio: 3.400 (68/20)

Gear Ratios 1st: 2.538 (33/13)

Gear Ratios 2nd: 1.875 (30/16)

Gear Ratios 3rd: 1.500 (27/18)

Gear Ratios 4th: 1.250 (25/20)

Gear Ratios 5th: 1.090 (24/22)

Final reduction ratio: 3.923 (51/13)

Clutch: Wet multi-disc


Brakes & Suspension

Brakes, front: Single 220 mm disc. Caliper: Dual-piston

Brakes, rear: Single 184 mm disc. Caliper: Single-piston

Suspension, front: 36 mm inverted telescopic fork with 20-way compression damping

Suspension, rear: Bottom-Link Uni-Trak with adjustable preload, 24-way compression and 21-way rebound damping


Frame & Dimensions

Frame type: Perimeter, high-tensile steel

Trail: 108 mm

Wheel travel front: 275 mm

Wheel travel rear: 275 mm

Tyre, front: 70/100-19 42M

Tyre, rear: 90/100-16 52M

Steering angle, left / right: 45° / 45°

L x W x H: 1,920 x 765 x 1,150 mm

Wheelbase: 1,310 mm

Ground clearance: 330 mm

Fuel capacity: 5 litres

Seat height: 870 mm

Curb mass: 77 kg

KAW-21-KX85

Data sheet

Bike Discipline
Motocross
Engine Size
85
Product Type
Bike
Bike Year
2021
