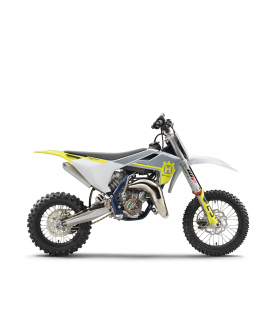

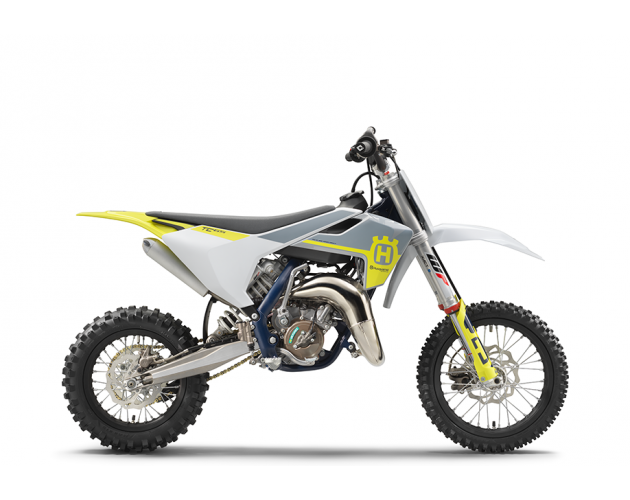

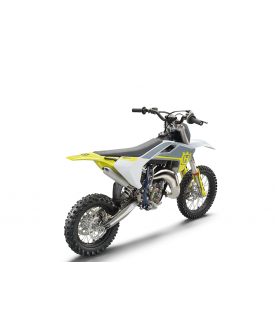

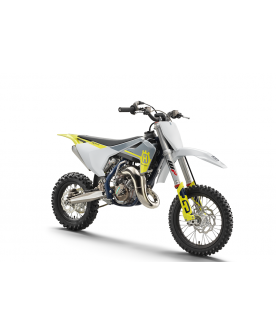

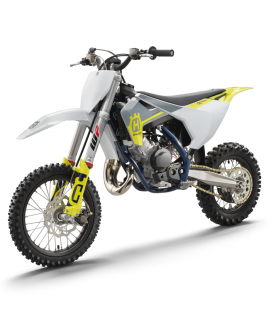

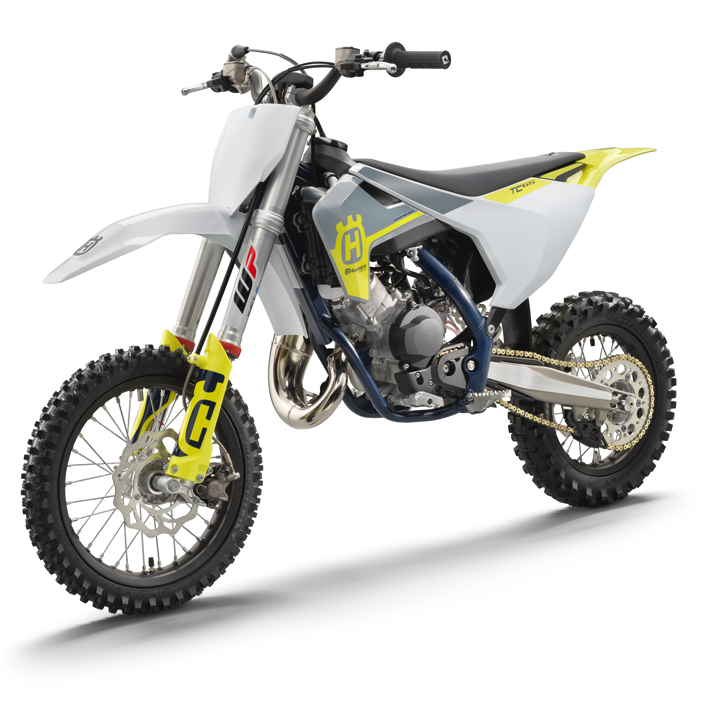

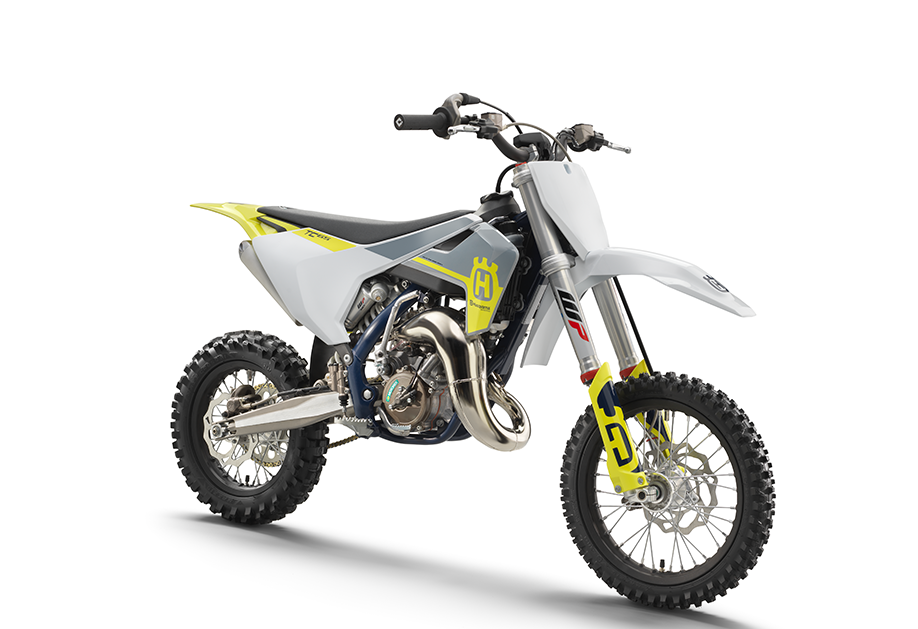

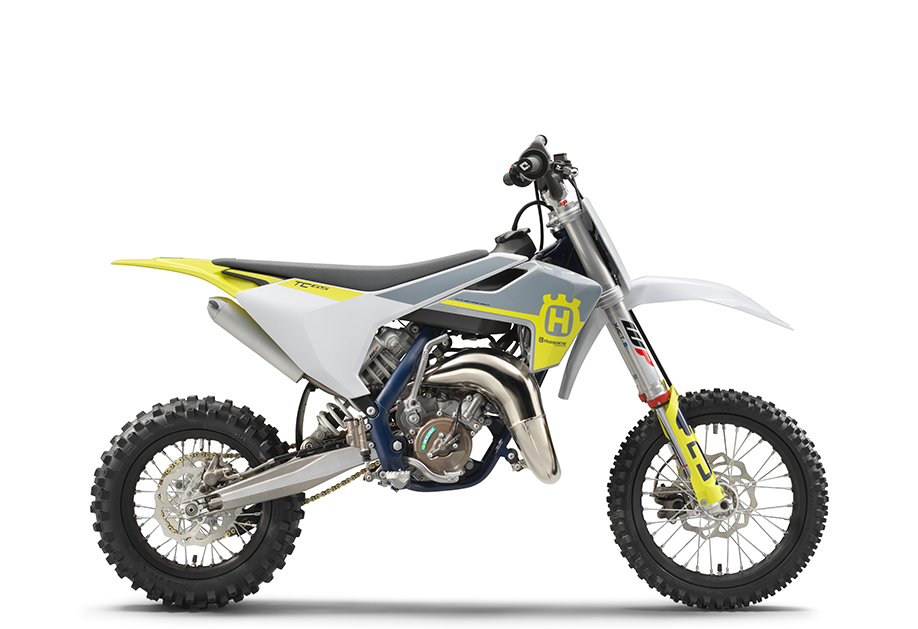

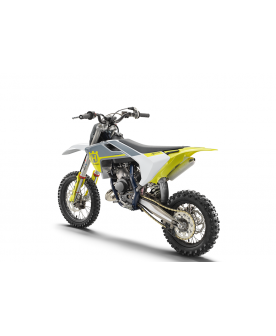

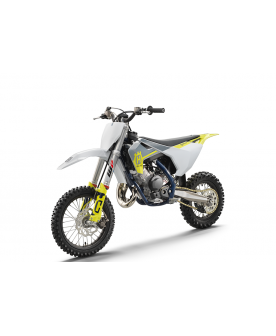

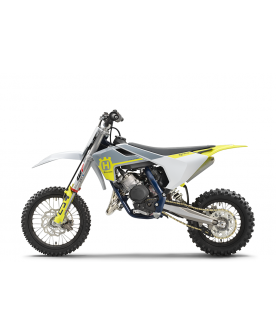

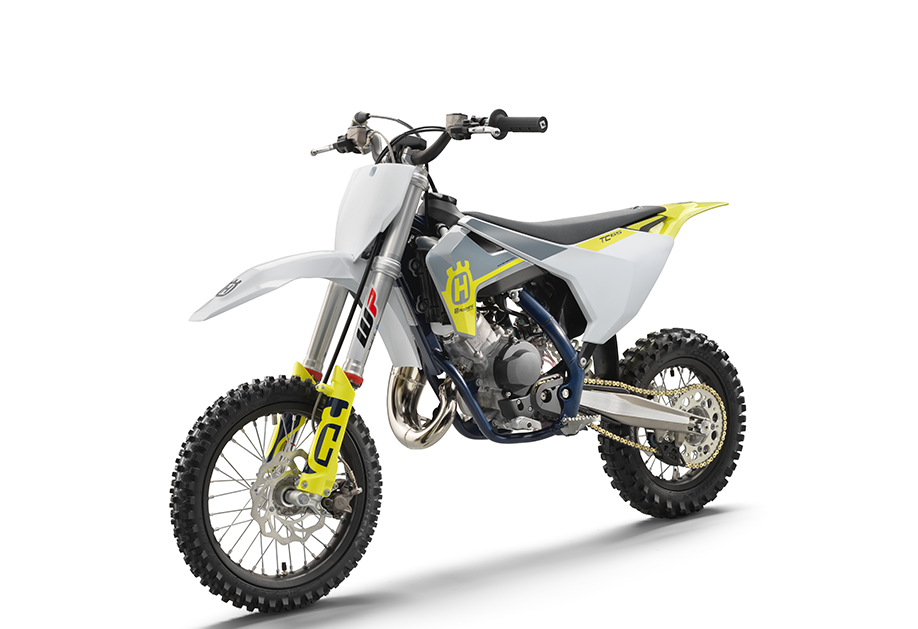

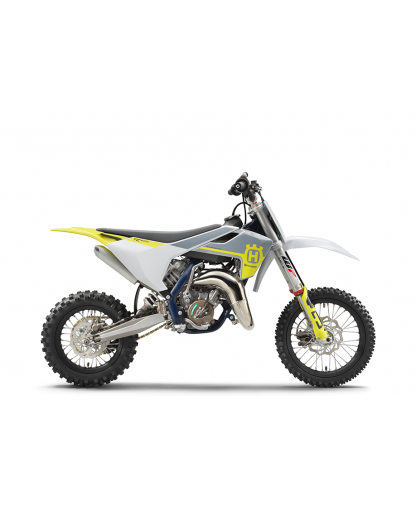

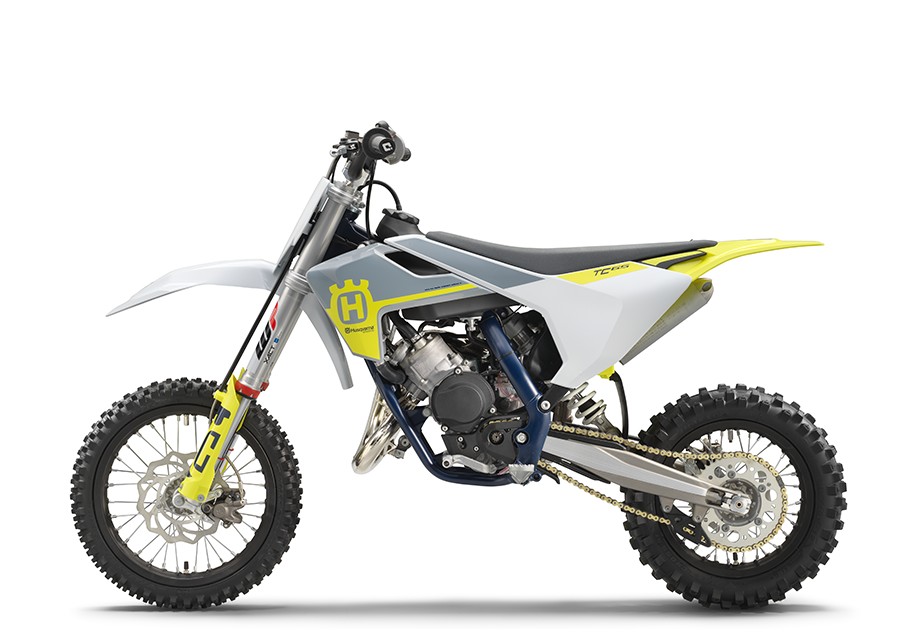

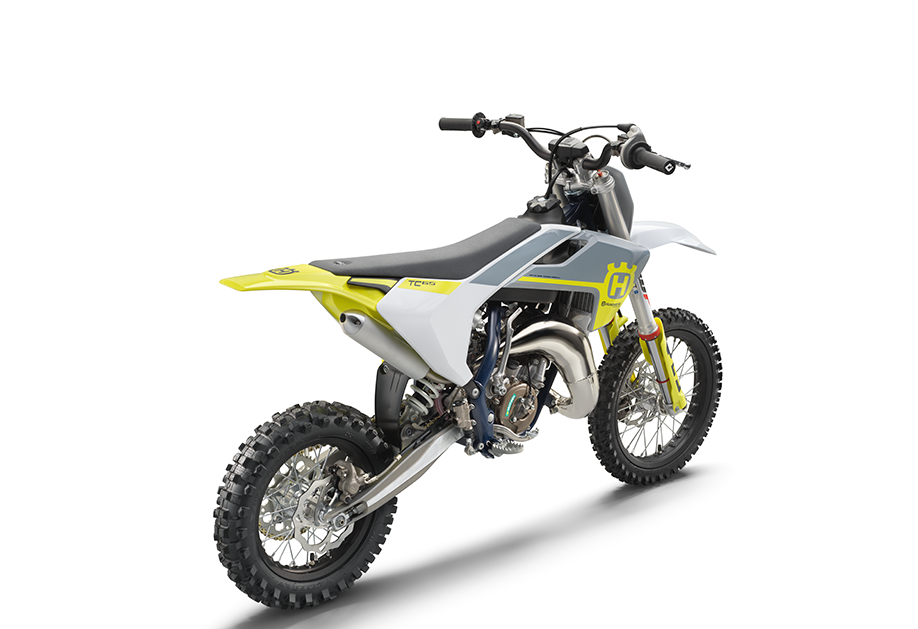

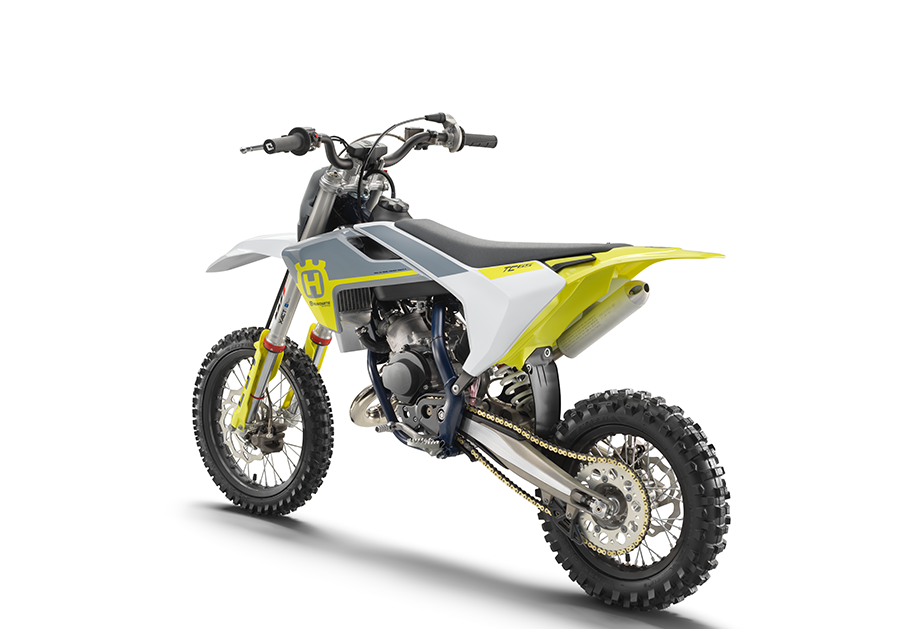

Husqvarna TC 65 2023

Husqvarna TC 65 2023

Product #HSKY-TC-65-23

For many young racers the TC 65 will be their first experience of a motocross machine equipped with a manual clutch and gearbox. Ensuring all riders enjoy a smooth transition as they move away from an automatic motorcycle, a lightweight hydraulic clutch and precise six-speed gearbox work together to ensure simple and consistent shifting. The TC 65 is complete with high quality, premium components fitted as standard.

Call for price & availability +35314526170

HUSQVARNA TC65 2023

The TC 65 will be the first time many young riders experience a full race machine featuring a manual clutch and gearbox. This transition is made easy with a hydraulic clutch and precise 6-speed gearbox. The TC 65 features the same level of quality found on the larger motocross range with premium components fitted as standard.



Full size performance

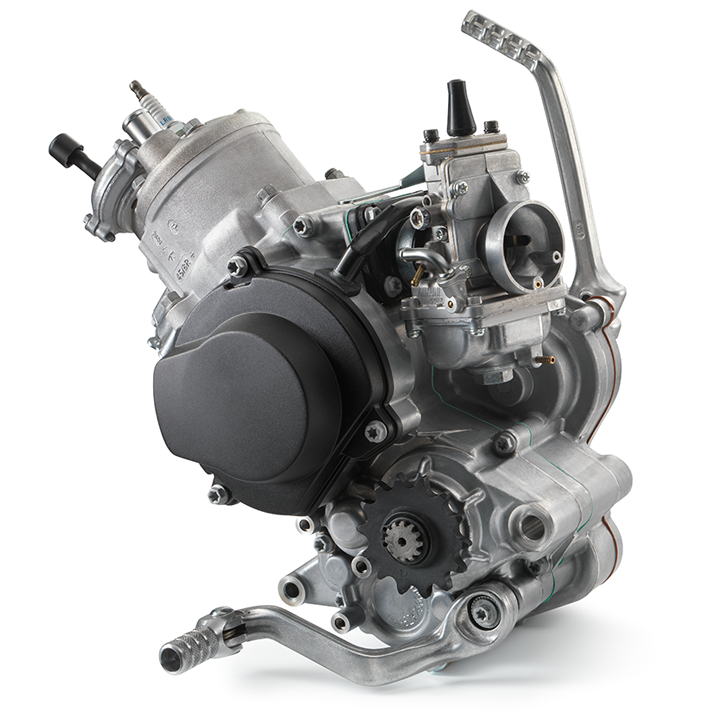

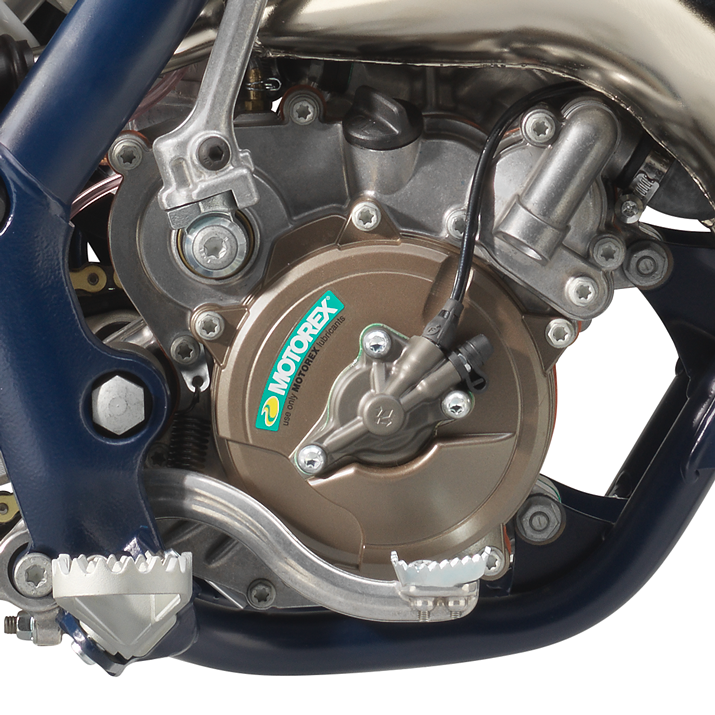

Engine

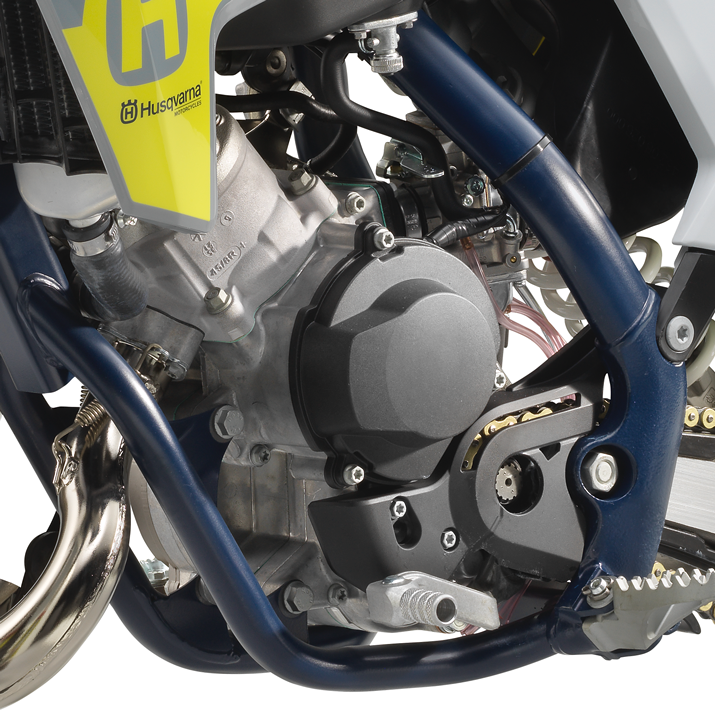

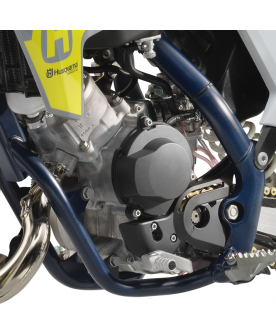

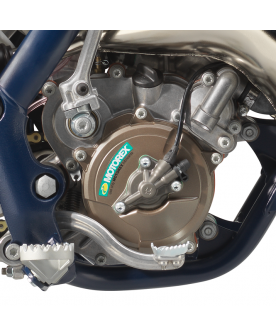

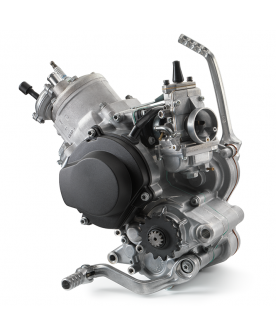

Featuring the latest in 2-stroke technology, the TC 65 is highly competitive in the 65cc class. Apart from using the lightest and most durable materials, the engine features a pressure controlled exhaust valve which contributes in delivering top level performance. Additionally, the engine features a manual 6-speed transmission and hydraulic clutch allowing the rider to have full control of the power delivery.

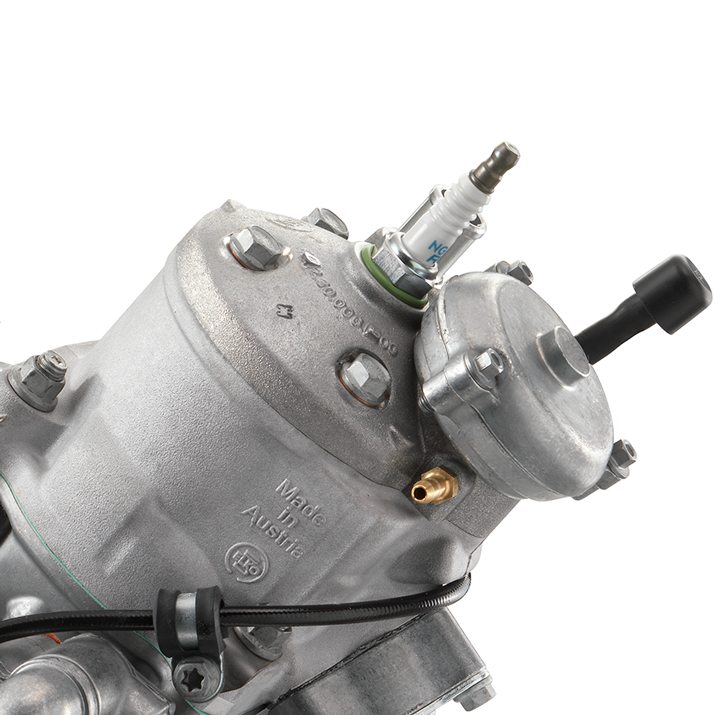

Cylinder

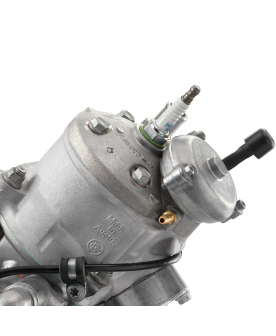

The high performance cylinder is made from lightweight and durable aluminium and incorporates a pressure controlled exhaust valve (PCEV) which provides unrivalled performance giving the young motocross rider a distinct advantage.


Clutch

The reliable hydraulic clutch system from Formula offers improved durability, near maintenance-free operation, and perfect action at all times. Free play is constantly compensated so the pressure point and function of the clutch remain identical in cold or hot conditions, as well as over time.



Cutting edge chassis

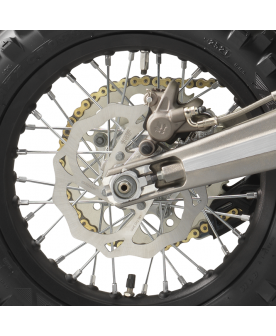

Brakes

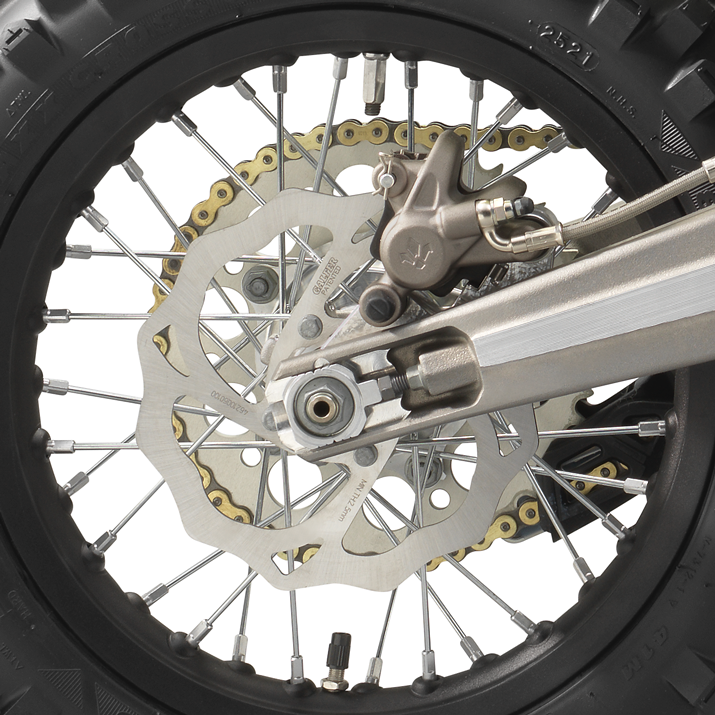

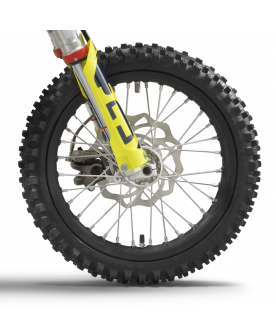

Featuring the same level of braking technology as the full-size motocross range, the TC 65 is fitted with floating Formula brake calipers and large waved front (198 mm) and rear (180 mm) brake discs. The complete system ensures advanced brake feeling and improved stopping performance in all conditions.


Frame

The high strength chromium molybdenum steel frame integrates carefully calculated parameters of longitudinal flex and torsional rigidity to benefit handling and suspension functionality. It guarantees easy handling and precise cornering, along with outstanding stability. The subframe is connected to the frame by 4 screws and is made of lightweight aluminium.


WP XACT Front Suspension

Featuring the latest in suspension technology, the TC 65 is fitted with WP XACT forks. Besides being very lightweight, the 35 mm USD forks feature exceptional damping and comfort characteristics allowing the rider to push the limit with complete confidence. With 215 mm of wheel travel, the air unit in the left fork leg can also be adjusted easily with the use of an air pump for rider preference, weight or track conditions.


WP PDS Rear Shock

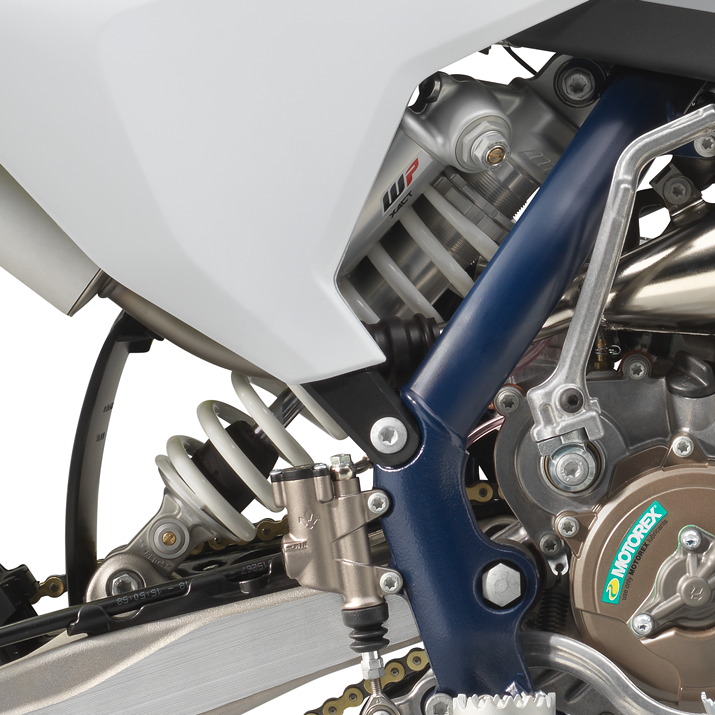

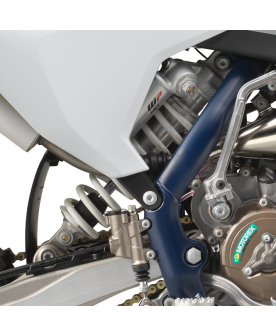

Linked directly to the swingarm, the WP monoshock is ideally matched to the front forks for the perfect balance and damping characteristics. Additionally, the rear shock offers 270 mm of suspension travel and is fully adjustable allowing it to be tailored to rider preferences or track conditions.



Premium quality standard


Cooling

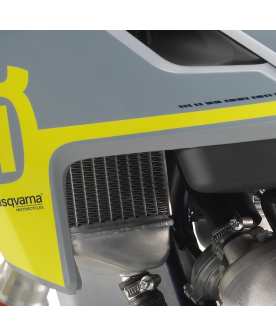

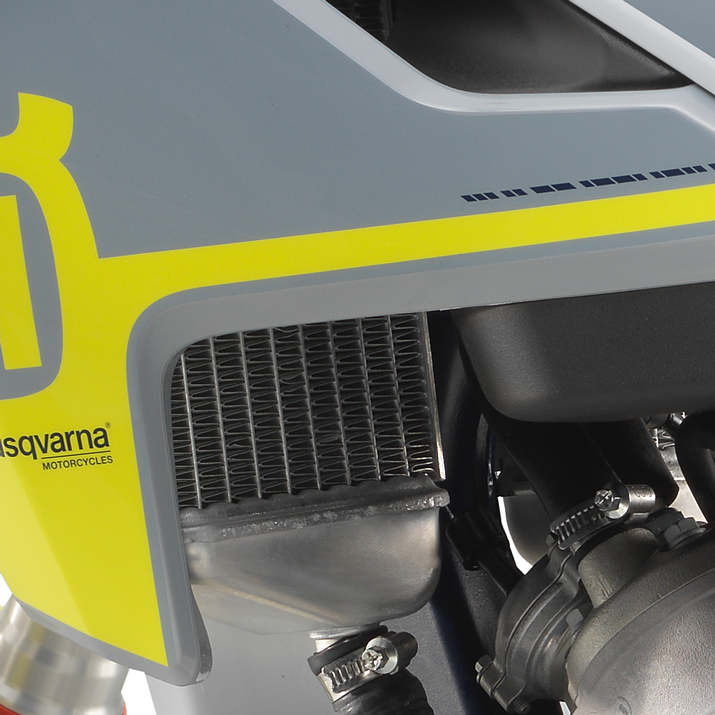

An intelligent cooling circuit with integrated crankcase cooling and two radiators ensure heat dissipation resulting in a constant temperature balance for consistent, high performance.

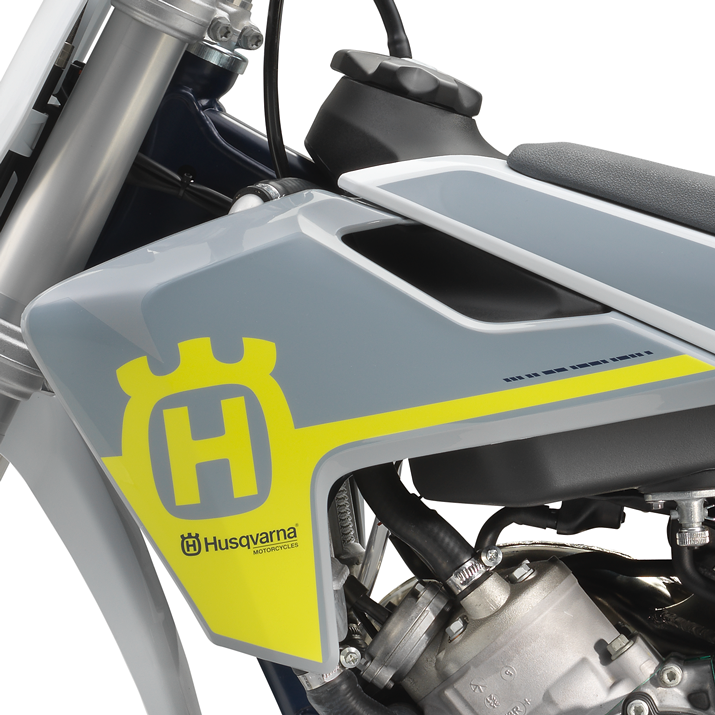

Graphics

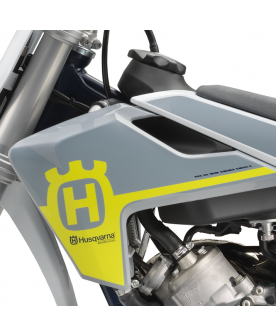

Inspired by the Swedish heritage of the Husqvarna brand, the striking white, grey, and yellow graphics are applied using in-mould technology for increased durability and a quality finish.

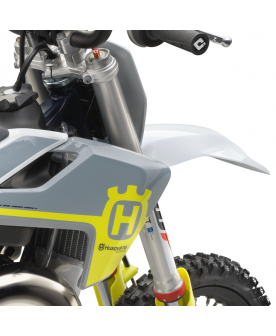

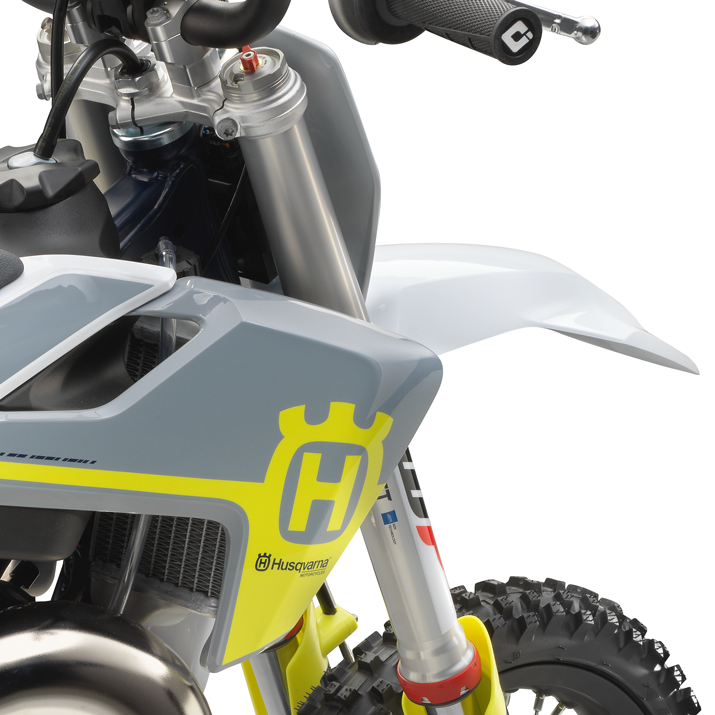

Bodywork

The bodywork of the TC 65 is modelled specifically to the smaller riders to experience the ideal contact points and ergonomic feeling instilling confidence and comfort in all riding conditions.

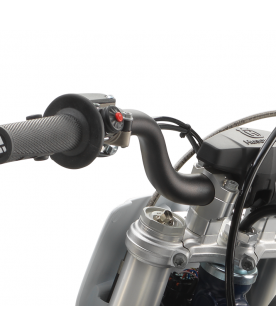

Handlebars

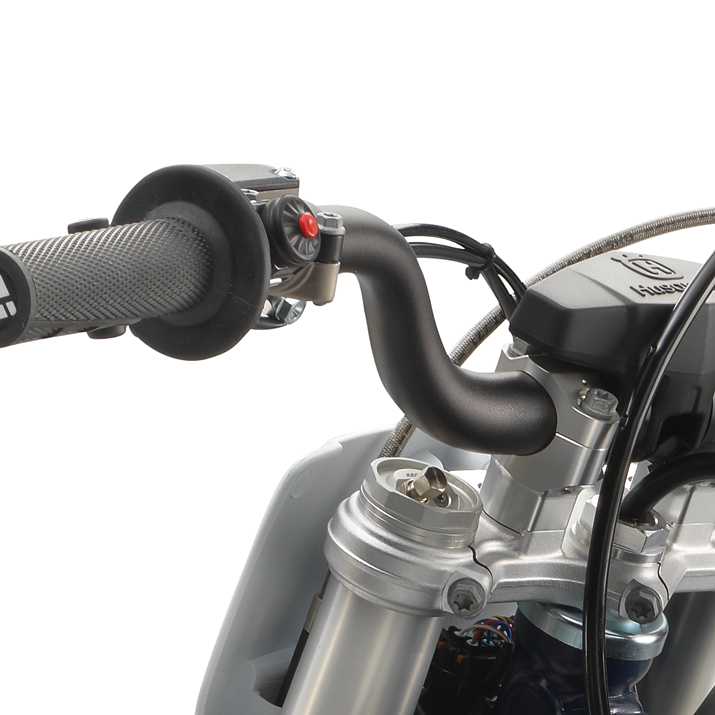

Made of high quality aluminium alloy, the handlebars offer top stability and safety. Additionally, a specific handlebar bend is created to offer the best ergonomic position. A crash pad on the handlebar brace protects the rider from any impact.

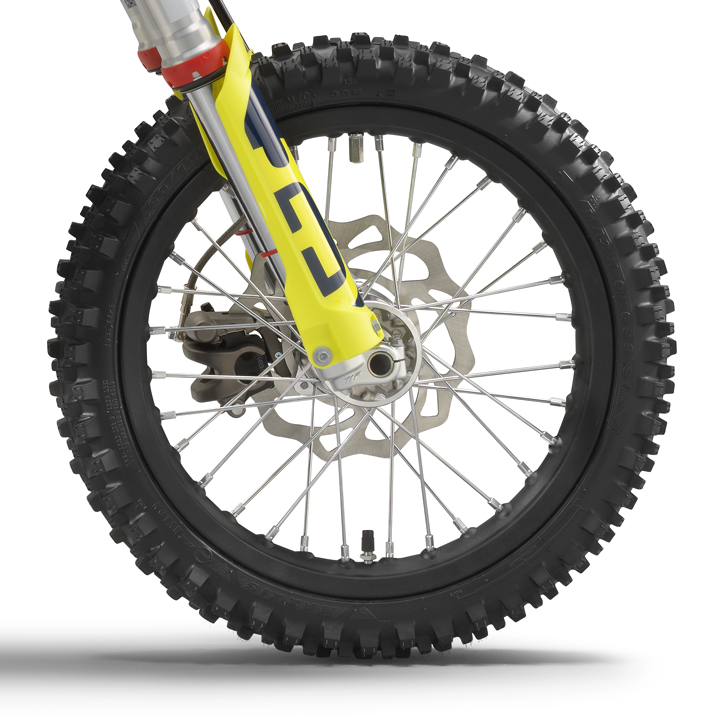

Wheels

The TC 65 uses lightweight, black anodised, aluminium rims that provide the highest levels of strength and reliability. MAXXIS MAXXCROSS-MX-ST tyres are fitted as standard and provide oustanding performance on a variety of different terrain.

TECHNICAL SPECS


ENGINE

TRANSMISSION 6-speed

STARTER Kickstarter

STROKE 40.8 mm

BORE 45 mm

CLUTCH Wet, multi-disc clutch, Formula hydraulics

DISPLACEMENT 64.9 cm³

EMS AET digital

DESIGN 1-cylinder, 2-stroke engine



CHASSIS

WEIGHT (WITHOUT FUEL) 53 kg

TANK CAPACITY (APPROX.) 3.7 l

FRONT BRAKE DISC DIAMETER 198 mm

REAR BRAKE DISC DIAMETER 180 mm

FRONT BRAKE Disc brake

REAR BRAKE Disc brake

CHAIN 1/2 x 1/4"

FRAME DESIGN Chrome-molybdenum steel central-tube frame

FRONT SUSPENSION XACT 35 WP Upside-Down fork, Ø 35 mm

GROUND CLEARANCE 280 mm

REAR SUSPENSION XACT WP PDS mono shock

SEAT HEIGHT 750 mm

STEERING HEAD ANGLE 64.5 °

SUSPENSION TRAVEL (FRONT) 215 mm

SUSPENSION TRAVEL (REAR) 270 mm

HSKY-TC-65-23

Data sheet

Bike Discipline
Motocross
Engine
2 Stroke
Product Type
Bike
Bike Make
TC65
Bike Year
2023
